A coordinator which keeps fine-grained profiling state about its workers and their jobs. More...
#include <profiled_coordinator.hpp>

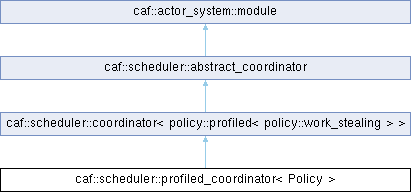

Inheritance diagram for caf::scheduler::profiled_coordinator< Policy >:
Public Types | |
| using | super = coordinator< Policy > |
| using | clock_type = std::chrono::high_resolution_clock |
| using | usec = std::chrono::microseconds |
| using | msec = std::chrono::milliseconds |
 Public Types inherited from caf::scheduler::coordinator< Policy > | |
| using | super = abstract_coordinator |
| using | policy_data = typename Policy::coordinator_data |
| using | worker_type = worker< Policy > |
| Public Types inherited from caf::scheduler::abstract_coordinator | |
| enum | utility_actor_id : size_t { printer_id , max_id } |
| Public Types inherited from caf::actor_system::module | |
| enum | id_t { scheduler , middleman , openssl_manager , network_manager , num_ids } |
Public Member Functions | |
| profiled_coordinator (actor_system &sys) | |
| void | init (actor_system_config &cfg) override |
| Allows the module to change the configuration of the actor system during startup. | |
| void | start () override |
| Starts any background threads needed by the module. | |
| void | stop () override |
| Stops all background threads of the module. | |
| void | start_measuring (size_t worker, actor_id job) |
| void | stop_measuring (size_t worker, actor_id job) |
| void | remove_job (actor_id job) |
| template<class Time , class Label > | |
| void | record (Time t, Label label, size_t rec_id, const measurement &m) |
| void | report (const actor_id &job, const measurement &m) |
| Public Member Functions inherited from caf::scheduler::coordinator< Policy > | |
| coordinator (actor_system &sys) | |
| worker_type * | worker_by_id (size_t x) |
| policy_data & | data () |
| Public Member Functions inherited from caf::scheduler::abstract_coordinator | |
| abstract_coordinator (actor_system &sys) | |
| actor | printer () const |
| Returns a handle to the central printing actor. | |
| virtual detail::actor_local_printer_ptr | printer_for (local_actor *self) |
| size_t | num_utility_actors () const |
| Returns the number of utility actors. | |
| virtual void | enqueue (resumable *what)=0 |
Puts what into the queue of a randomly chosen worker. | |
| actor_system & | system () |
| const actor_system_config & | config () const |
| size_t | max_throughput () const |
| size_t | num_workers () const |
| virtual bool | detaches_utility_actors () const |
Returns true if this scheduler detaches its utility actors. | |
| void | start () override |
| Starts any background threads needed by the module. | |
| void | init (actor_system_config &cfg) override |
| Allows the module to change the configuration of the actor system during startup. | |
| id_t | id () const override |
| Returns the identifier of this module. | |
| void * | subtype_ptr () override |
| Returns a pointer to the subtype. | |
| virtual actor_clock & | clock () noexcept=0 |
| Public Member Functions inherited from caf::actor_system::module | |
| const char * | name () const noexcept |
| Returns the human-readable name of the module. | |
| virtual void | start ()=0 |
| Starts any background threads needed by the module. | |
| virtual void | stop ()=0 |
| Stops all background threads of the module. | |
| virtual void | init (actor_system_config &)=0 |
| Allows the module to change the configuration of the actor system during startup. | |
| virtual id_t | id () const =0 |
| Returns the identifier of this module. | |
| virtual void * | subtype_ptr ()=0 |
| Returns a pointer to the subtype. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from caf::scheduler::coordinator< Policy > | |
| static actor_system::module * | make (actor_system &sys, detail::type_list<>) |
| Static Public Member Functions inherited from caf::scheduler::abstract_coordinator | |
| static void | cleanup_and_release (resumable *) |
| static size_t | default_thread_count () noexcept |
| Protected Member Functions inherited from caf::scheduler::coordinator< Policy > | |
| void | start () override |
| Starts any background threads needed by the module. | |
| void | stop () override |
| Stops all background threads of the module. | |
| void | enqueue (resumable *ptr) override |
Puts what into the queue of a randomly chosen worker. | |
| detail::thread_safe_actor_clock & | clock () noexcept override |
| Protected Member Functions inherited from caf::scheduler::abstract_coordinator | |
| void | stop_actors () |
| Protected Attributes inherited from caf::scheduler::abstract_coordinator | |
| std::atomic< size_t > | next_worker_ |
| ID of the worker receiving the next enqueue (round-robin dispatch). | |
| size_t | max_throughput_ |
| Number of messages each actor is allowed to consume per resume. | |
| size_t | num_workers_ |
| Configured number of workers. | |
| std::array< actor, max_id > | utility_actors_ |
| Background workers, e.g., printer. | |
| actor_system & | system_ |
| Reference to the host system. | |
Detailed Description
template<class Policy = policy::profiled<policy::work_stealing>>
class caf::scheduler::profiled_coordinator< Policy >
class caf::scheduler::profiled_coordinator< Policy >
A coordinator which keeps fine-grained profiling state about its workers and their jobs.
Member Function Documentation
◆ init()
template<class Policy = policy::profiled<policy::work_stealing>>
|
overridevirtual |
Allows the module to change the configuration of the actor system during startup.
Reimplemented from caf::scheduler::abstract_coordinator.
◆ start()
template<class Policy = policy::profiled<policy::work_stealing>>
|
overridevirtual |
Starts any background threads needed by the module.
Reimplemented from caf::scheduler::coordinator< Policy >.
◆ stop()
template<class Policy = policy::profiled<policy::work_stealing>>
|
overridevirtual |
Stops all background threads of the module.
Reimplemented from caf::scheduler::coordinator< Policy >.
The documentation for this class was generated from the following file:
- libcaf_core/caf/scheduler/profiled_coordinator.hpp
