caf::local_actor Class Reference

Base class for actors running on this node, either living in an own thread or cooperatively scheduled. More...

#include <local_actor.hpp>

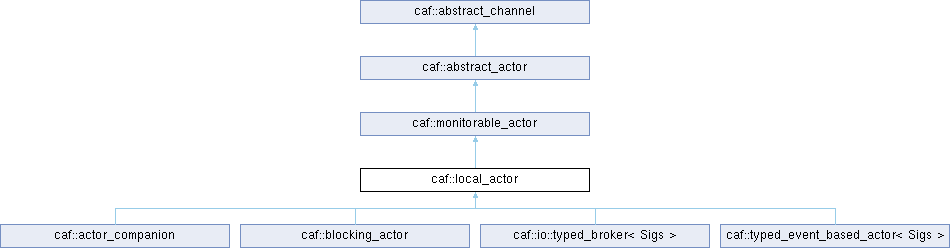

Inheritance diagram for caf::local_actor:

Classes
struct	inbound_stream_metrics_t
	Optional metrics for inbound stream traffic collected by individual actors when configured to do so. More...
struct	metrics_t
	Optional metrics collected by individual actors when configured to do so. More...
struct	outbound_stream_metrics_t
	Optional metrics for outbound stream traffic collected by individual actors when configured to do so. More...

Public Types
using	clock_type = std::chrono::steady_clock
	Defines a monotonic clock suitable for measuring intervals.

Public Member Functions
	local_actor (actor_config &cfg)
void	on_destroy () override
	Cleans up any remaining state before the destructor is called.
void	setup_metrics ()
virtual void	launch (execution_unit *eu, bool lazy, bool hide)=0
clock_type::time_point	now () const noexcept
	Returns the current time.
disposable	request_response_timeout (timespan d, message_id mid)
	Requests a new timeout for mid.
template<class T , spawn_options Os = no_spawn_options, class... Ts>
infer_handle_from_class_t< T >	spawn (Ts &&... xs)
template<spawn_options Os = no_spawn_options, class F , class... Ts>
infer_handle_from_fun_t< F >	spawn (F fun, Ts &&... xs)
template<class T , spawn_options Os = no_spawn_options, class Groups , class... Ts>
actor	spawn_in_groups (const Groups &gs, Ts &&... xs)
template<class T , spawn_options Os = no_spawn_options, class... Ts>
actor	spawn_in_groups (std::initializer_list< group > gs, Ts &&... xs)
template<class T , spawn_options Os = no_spawn_options, class... Ts>
actor	spawn_in_group (const group &grp, Ts &&... xs)
template<spawn_options Os = no_spawn_options, class Groups , class F , class... Ts>
actor	spawn_in_groups (const Groups &gs, F fun, Ts &&... xs)
template<spawn_options Os = no_spawn_options, class F , class... Ts>
actor	spawn_in_groups (std::initializer_list< group > gs, F fun, Ts &&... xs)
template<spawn_options Os = no_spawn_options, class F , class... Ts>
actor	spawn_in_group (const group &grp, F fun, Ts &&... xs)
void	send_exit (const actor_addr &whom, error reason)
	Sends an exit message to whom.
void	send_exit (const strong_actor_ptr &whom, error reason)
	Sends an exit message to whom.
template<class ActorHandle >
void	send_exit (const ActorHandle &whom, error reason)
	Sends an exit message to whom.
execution_unit *	context () const noexcept
	Returns the execution unit currently used by this actor.
void	context (execution_unit *x) noexcept
	Sets the execution unit for this actor.
actor_system &	system () const noexcept
	Returns the hosting actor system.
const actor_system_config &	config () const noexcept
	Returns the config of the hosting actor system.
actor_clock &	clock () const noexcept
	Returns the clock of the actor system.
strong_actor_ptr &	current_sender () noexcept
	Returns a pointer to the sender of the current message.
message_id	current_message_id () noexcept
	Returns the ID of the current message.
message_id	take_current_message_id () noexcept
	Returns the ID of the current message and marks the ID stored in the current mailbox element as answered.
void	drop_current_message_id () noexcept
	Marks the current message ID as answered.
strong_actor_ptr	current_next_stage () noexcept
	Returns a pointer to the next stage from the forwarding path of the current message or nullptr if the path is empty.
strong_actor_ptr	take_current_next_stage ()
	Returns a pointer to the next stage from the forwarding path of the current message and removes it from the path.
const mailbox_element::forwarding_stack &	current_forwarding_stack () noexcept
	Returns the forwarding stack from the current mailbox element.
mailbox_element::forwarding_stack	take_current_forwarding_stack () noexcept
	Moves the forwarding stack from the current mailbox element.
mailbox_element *	current_mailbox_element () noexcept
	Returns a pointer to the currently processed mailbox element.
void	monitor (const node_id &node)
	Adds a unidirectional monitor to node.
template<message_priority P = message_priority::normal, class Handle >
void	monitor (const Handle &whom)
	Adds a unidirectional monitor to whom.
void	demonitor (const actor_addr &whom)
	Removes a monitor from whom.
void	demonitor (const strong_actor_ptr &whom)
	Removes a monitor from whom.
void	demonitor (const node_id &node)
	Removes a monitor from node.
template<class Handle >
void	demonitor (const Handle &whom)
	Removes a monitor from whom.
virtual void	on_exit ()
	Can be overridden to perform cleanup code after an actor finished execution.
template<class... Ts>
detail::response_promise_t< Ts... >	make_response_promise ()
	Creates a typed_response_promise to respond to a request later on.
response_promise	make_response_promise ()
	Creates a response_promise to respond to a request later on.
const char *	name () const override
	Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.
virtual error	save_state (serializer &sink, unsigned int version)
	Serializes the state of this actor to sink.
virtual error	load_state (deserializer &source, unsigned int version)
	Deserializes the state of this actor from source.
const error &	fail_state () const noexcept
	Returns the currently defined fail state.
Public Member Functions inherited from caf::monitorable_actor
virtual const char *	name () const
	Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.
void	attach (attachable_ptr ptr) override
	Attaches ptr to this actor.
size_t	detach (const attachable::token &what) override
	Detaches the first attached object that matches what.
void	link_to (const actor_addr &x)
	Links this actor to x.
template<class ActorHandle >
void	link_to (const ActorHandle &x)
	Links this actor to x.
void	unlink_from (const actor_addr &x)
	Unlinks this actor from x.
template<class ActorHandle >
void	unlink_from (const ActorHandle &x)
	Links this actor to x.
Public Member Functions inherited from caf::abstract_actor
actor_control_block *	ctrl () const
	abstract_actor (const abstract_actor &)=delete
abstract_actor &	operator= (const abstract_actor &)=delete
virtual void	on_destroy ()
	Cleans up any remaining state before the destructor is called.
bool	enqueue (strong_actor_ptr sender, message_id mid, message msg, execution_unit *host) override
	Enqueues a new message without forwarding stack to the channel.
virtual bool	enqueue (mailbox_element_ptr what, execution_unit *host)=0
	Enqueues a new message wrapped in a mailbox_element to the actor.
virtual void	attach (attachable_ptr ptr)=0
	Attaches ptr to this actor.
template<class F >
void	attach_functor (F f)
	Convenience function that attaches the functor f to this actor.
actor_addr	address () const noexcept
	Returns the logical actor address.
virtual size_t	detach (const attachable::token &what)=0
	Detaches the first attached object that matches what.
virtual std::set< std::string >	message_types () const
	Returns the set of accepted messages types as strings or an empty set if this actor is untyped.
actor_id	id () const noexcept
	Returns the ID of this actor.
node_id	node () const noexcept
	Returns the node this actor is living on.
actor_system &	home_system () const noexcept
	Returns the system that created this actor (or proxy).
Public Member Functions inherited from caf::abstract_channel
virtual bool	enqueue (strong_actor_ptr sender, message_id mid, message content, execution_unit *host=nullptr)=0
	Enqueues a new message without forwarding stack to the channel.
bool	is_abstract_actor () const
bool	is_abstract_group () const
bool	is_actor_decorator () const

Protected Attributes
execution_unit *	context_
mailbox_element *	current_element_
message_id	last_request_id_
detail::unique_function< behavior(local_actor *)>	initial_behavior_fac_
	Factory function for returning initial behavior in function-based actors.
metrics_t	metrics_
Protected Attributes inherited from caf::monitorable_actor
error	fail_state_
std::condition_variable	cv_
attachable_ptr	attachables_head_
Protected Attributes inherited from caf::abstract_actor
std::mutex	mtx_

Related Symbols
(Note that these are not member symbols.)
constexpr keep_behavior_t	keep_behavior = keep_behavior_t{}
	Policy tag that causes event_based_actor::become to keep the current behavior available.
Related Symbols inherited from caf::abstract_actor
using	actor_id = uint64_t
	A unique actor ID.

Additional Inherited Members
Static Public Attributes inherited from caf::abstract_channel
static constexpr int	is_abstract_actor_flag = 0x01000000
static constexpr int	is_abstract_group_flag = 0x02000000
static constexpr int	is_actor_bind_decorator_flag = 0x04000000
static constexpr int	is_actor_dot_decorator_flag = 0x08000000
static constexpr int	is_actor_decorator_mask = 0x0C000000
static constexpr int	is_hidden_flag = 0x10000000
Protected Member Functions inherited from caf::monitorable_actor
virtual void	on_cleanup (const error &reason)
	Allows subclasses to add additional cleanup code to the critical section in cleanup.
void	bounce (mailbox_element_ptr &what)
	Sends a response message if what is a request.
void	bounce (mailbox_element_ptr &what, const error &err)
	Sends a response message if what is a request.
	monitorable_actor (actor_config &cfg)
	Creates a new actor instance.
void	attach_impl (attachable_ptr &ptr)
size_t	detach_impl (const attachable::token &what, bool stop_on_hit=false, bool dry_run=false)
bool	handle_system_message (mailbox_element &x, execution_unit *ctx, bool trap_exit)
template<class F >
bool	handle_system_message (mailbox_element &x, execution_unit *context, bool trap_exit, F &down_msg_handler)
Protected Member Functions inherited from caf::abstract_actor
	abstract_actor (actor_config &cfg)
Protected Member Functions inherited from caf::abstract_channel
int	flags () const
void	flags (int new_value)

Detailed Description

Base class for actors running on this node, either living in an own thread or cooperatively scheduled.

Member Function Documentation

current_sender()

strong_actor_ptr & caf::local_actor::current_sender ( )

noexcept

Returns a pointer to the sender of the current message.

Precondition

current_mailbox_element() != nullptr

fail_state()

const error & caf::local_actor::fail_state ( ) const

noexcept

Returns the currently defined fail state.

If this reason is not none then the actor will terminate with this error after executing the current message handler.

load_state()

error caf::local_actor::load_state ( deserializer &  source, unsigned int  version  )

virtual

Deserializes the state of this actor from source.

This function is only called if this actor has set the is_serializable flag. The default implementation throws a std::logic_error.

make_response_promise()

template<class... Ts>

detail::response_promise_t< Ts... > caf::local_actor::make_response_promise

(

)

Creates a typed_response_promise to respond to a request later on.

make_response_promise<typed_response_promise<int, int>>() is equivalent to make_response_promise<int, int>().

monitor() [1/2]

template<message_priority P = message_priority::normal, class Handle >

void caf::local_actor::monitor

(

const Handle &

whom

)

Adds a unidirectional monitor to whom.

Note

Each call to monitor creates a new, independent monitor.

monitor() [2/2]

void caf::local_actor::monitor

(

const node_id &

node

)

Adds a unidirectional monitor to node.

Note

Each call to monitor creates a new, independent monitor.

name()

const char * caf::local_actor::name ( ) const

overridevirtual

Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

The default implementation simply returns "actor".

Reimplemented from caf::monitorable_actor.

on_destroy()

void caf::local_actor::on_destroy ( )

overridevirtual

Cleans up any remaining state before the destructor is called.

This function makes sure it is safe to call virtual functions in sub classes before destroying the object, because calling virtual function in the destructor itself is not safe. Any override implementation is required to call super::destroy() at the end.

Reimplemented from caf::abstract_actor.

on_exit()

void caf::local_actor::on_exit ( )

virtual

Can be overridden to perform cleanup code after an actor finished execution.

Reimplemented in caf::actor_companion.

request_response_timeout()

disposable caf::local_actor::request_response_timeout	(	timespan	d,
		message_id	mid
	)

Requests a new timeout for mid.

Precondition

mid.is_request()

save_state()

error caf::local_actor::save_state ( serializer &  sink, unsigned int  version  )

virtual

Serializes the state of this actor to sink.

This function is only called if this actor has set the is_serializable flag. The default implementation throws a std::logic_error.

take_current_next_stage()

strong_actor_ptr caf::local_actor::take_current_next_stage

(

)

Returns a pointer to the next stage from the forwarding path of the current message and removes it from the path.

Returns nullptr if the path is empty.

---

The documentation for this class was generated from the following files:

• libcaf_core/caf/local_actor.hpp
• libcaf_core/caf/behavior_policy.hpp
• libcaf_core/caf/local_actor.cpp
