A coordinator creates the workers, manages delayed sends and the central printer instance for aout. More...

#include <abstract_coordinator.hpp>

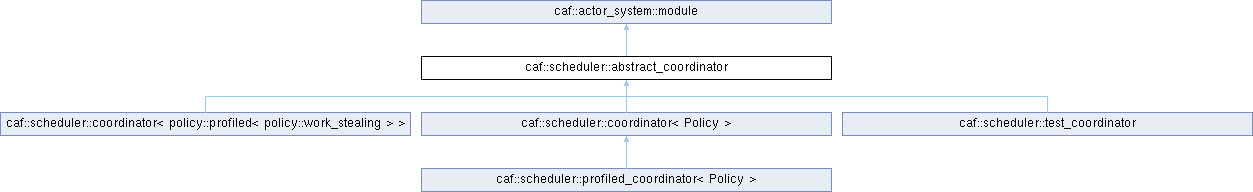

Inheritance diagram for caf::scheduler::abstract_coordinator:

Public Types
enum	utility_actor_id : size_t { printer_id , max_id }

Public Types inherited from caf::actor_system::module
enum	id_t { scheduler , middleman , openssl_manager , network_manager , num_ids }

Public Member Functions
	abstract_coordinator (actor_system &sys)

actor	printer () const
	Returns a handle to the central printing actor.

virtual detail::actor_local_printer_ptr	printer_for (local_actor *self)

size_t	num_utility_actors () const
	Returns the number of utility actors.

virtual void	enqueue (resumable *what)=0
	Puts `what` into the queue of a randomly chosen worker.

actor_system &	system ()

const actor_system_config &	config () const

size_t	max_throughput () const

size_t	num_workers () const

virtual bool	detaches_utility_actors () const
	Returns `true` if this scheduler detaches its utility actors.

void	start () override
	Starts any background threads needed by the module.

void	init (actor_system_config &cfg) override
	Allows the module to change the configuration of the actor system during startup.

id_t	id () const override
	Returns the identifier of this module.

void *	subtype_ptr () override
	Returns a pointer to the subtype.

virtual actor_clock &	clock () noexcept=0

Public Member Functions inherited from caf::actor_system::module
const char *	name () const noexcept
	Returns the human-readable name of the module.

virtual void	start ()=0
	Starts any background threads needed by the module.

virtual void	stop ()=0
	Stops all background threads of the module.

virtual void	init (actor_system_config &)=0
	Allows the module to change the configuration of the actor system during startup.

virtual id_t	id () const =0
	Returns the identifier of this module.

virtual void *	subtype_ptr ()=0
	Returns a pointer to the subtype.

Static Public Member Functions
static void	cleanup_and_release (resumable *)

static size_t	default_thread_count () noexcept

Protected Member Functions
void	stop_actors ()

Protected Attributes
std::atomic< size_t >	next_worker_
	ID of the worker receiving the next enqueue (round-robin dispatch).

size_t	max_throughput_
	Number of messages each actor is allowed to consume per resume.

size_t	num_workers_
	Configured number of workers.

std::array< actor, max_id >	utility_actors_
	Background workers, e.g., printer.

actor_system &	system_
	Reference to the host system.
