caf::monitorable_actor Class Reference

Base class for all actor implementations. More...

#include <monitorable_actor.hpp>

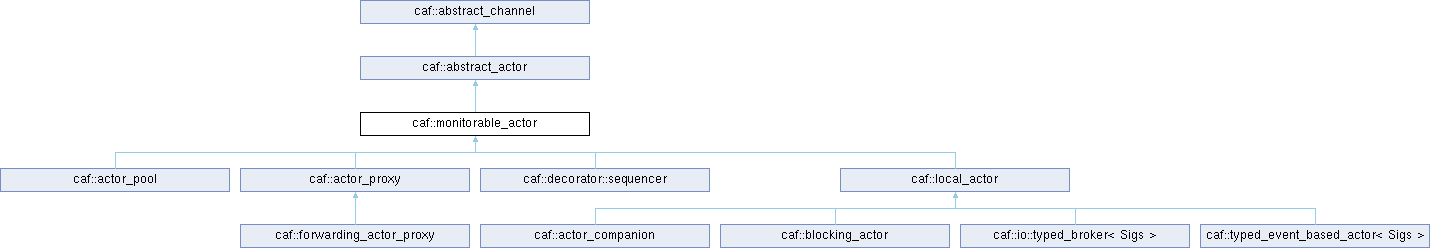

Inheritance diagram for caf::monitorable_actor:
caf::abstract_actor caf::abstract_channel caf::actor_pool caf::actor_proxy caf::decorator::sequencer caf::local_actor caf::forwarding_actor_proxy caf::actor_companion caf::blocking_actor caf::io::typed_broker< Sigs > caf::typed_event_based_actor< Sigs >

Public Member Functions

virtual const char * name () const
 Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

void attach (attachable_ptr ptr) override
 Attaches ptr to this actor.

size_t detach (const attachable::token &what) override
 Detaches the first attached object that matches what.

void link_to (const actor_addr &x)
 Links this actor to x.

template<class ActorHandle >
void link_to (const ActorHandle &x)
 Links this actor to x.

void unlink_from (const actor_addr &x)
 Unlinks this actor from x.

template<class ActorHandle >
void unlink_from (const ActorHandle &x)
 Links this actor to x.

- Public Member Functions inherited from caf::abstract_actor
actor_control_blockctrl () const

 abstract_actor (const abstract_actor &)=delete

abstract_actoroperator= (const abstract_actor &)=delete

virtual void on_destroy ()
 Cleans up any remaining state before the destructor is called.

bool enqueue (strong_actor_ptr sender, message_id mid, message msg, execution_unit *host) override
 Enqueues a new message without forwarding stack to the channel.

virtual bool enqueue (mailbox_element_ptr what, execution_unit *host)=0
 Enqueues a new message wrapped in a mailbox_element to the actor.

virtual void attach (attachable_ptr ptr)=0
 Attaches ptr to this actor.

template<class F >
void attach_functor (F f)
 Convenience function that attaches the functor f to this actor.

actor_addr address () const noexcept
 Returns the logical actor address.

virtual size_t detach (const attachable::token &what)=0
 Detaches the first attached object that matches what.

virtual std::set< std::string > message_types () const
 Returns the set of accepted messages types as strings or an empty set if this actor is untyped.

actor_id id () const noexcept
 Returns the ID of this actor.

node_id node () const noexcept
 Returns the node this actor is living on.

actor_systemhome_system () const noexcept
 Returns the system that created this actor (or proxy).

- Public Member Functions inherited from caf::abstract_channel
virtual bool enqueue (strong_actor_ptr sender, message_id mid, message content, execution_unit *host=nullptr)=0
 Enqueues a new message without forwarding stack to the channel.

bool is_abstract_actor () const

bool is_abstract_group () const

bool is_actor_decorator () const


Protected Member Functions

virtual void on_cleanup (const error &reason)
 Allows subclasses to add additional cleanup code to the critical section in cleanup.

void bounce (mailbox_element_ptr &what)
 Sends a response message if what is a request.

void bounce (mailbox_element_ptr &what, const error &err)
 Sends a response message if what is a request.

 monitorable_actor (actor_config &cfg)
 Creates a new actor instance.

void attach_impl (attachable_ptr &ptr)

size_t detach_impl (const attachable::token &what, bool stop_on_hit=false, bool dry_run=false)

bool handle_system_message (mailbox_element &x, execution_unit *ctx, bool trap_exit)

template<class F >
bool handle_system_message (mailbox_element &x, execution_unit *context, bool trap_exit, F &down_msg_handler)

- Protected Member Functions inherited from caf::abstract_actor
 abstract_actor (actor_config &cfg)

- Protected Member Functions inherited from caf::abstract_channel
int flags () const

void flags (int new_value)


Protected Attributes

error fail_state_

std::condition_variable cv_

attachable_ptr attachables_head_

- Protected Attributes inherited from caf::abstract_actor
std::mutex mtx_


Additional Inherited Members

- Static Public Attributes inherited from caf::abstract_channel
static constexpr int is_abstract_actor_flag = 0x01000000

static constexpr int is_abstract_group_flag = 0x02000000

static constexpr int is_actor_bind_decorator_flag = 0x04000000

static constexpr int is_actor_dot_decorator_flag = 0x08000000

static constexpr int is_actor_decorator_mask = 0x0C000000

static constexpr int is_hidden_flag = 0x10000000


Detailed Description

Base class for all actor implementations.

Member Function Documentation

◆ attach()

void caf::monitorable_actor::attach ( attachable_ptr  ptr)
overridevirtual

Attaches ptr to this actor.

The actor will call ptr->detach(...) on exit, or immediately if it already finished execution.

Implements caf::abstract_actor.

◆ detach()

size_t caf::monitorable_actor::detach ( const attachable::token what)
overridevirtual

Detaches the first attached object that matches what.

Implements caf::abstract_actor.

◆ name()

const char * caf::monitorable_actor::name ( ) const
virtual

Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

The default implementation simply returns "actor".

Reimplemented in caf::blocking_actor, and caf::local_actor.

◆ on_cleanup()

void caf::monitorable_actor::on_cleanup ( const error reason)
protectedvirtual

Allows subclasses to add additional cleanup code to the critical section in cleanup.

This member function is called inside of a critical section.

Reimplemented in caf::actor_pool, and caf::decorator::sequencer.


The documentation for this class was generated from the following files:
