caf::net::lp::framing Class Reference

Implements length-prefix framing for discretizing a Byte stream into messages of varying size. More...

#include <framing.hpp>

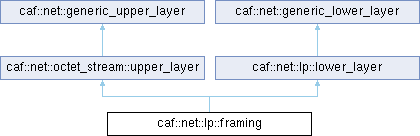

Inheritance diagram for caf::net::lp::framing:

Public Types
using	upper_layer_ptr = std::unique_ptr<lp::upper_layer>

Static Public Member Functions
static std::unique_ptr< framing >	make (upper_layer_ptr up)
static disposable	run (multiplexer &mpx, stream_socket fd, async::consumer_resource< chunk > pull, async::producer_resource< chunk > push)
static disposable	run (multiplexer &mpx, ssl::connection conn, async::consumer_resource< chunk > pull, async::producer_resource< chunk > push)

Additional Inherited Members
Public Member Functions inherited from caf::net::octet_stream::upper_layer
virtual error	start (lower_layer *down)=0
	Initializes the upper layer.
virtual ptrdiff_t	consume (byte_span buffer, byte_span delta)=0
	Consumes bytes from the lower layer.
virtual void	written (size_t num_bytes)
	Called from the lower layer whenever data has been written.
Public Member Functions inherited from caf::net::generic_upper_layer
virtual void	prepare_send ()=0
	Gives the upper layer an opportunity to add additional data to the output buffer.
virtual bool	done_sending ()=0
	Queries whether all pending data has been sent.
virtual void	abort (const error &reason)=0
	Called by the lower layer for cleaning up any state in case of an error or when disposed.
Public Member Functions inherited from caf::net::lp::lower_layer
virtual void	request_messages ()=0
	Pulls messages from the transport until calling suspend_reading.
virtual void	suspend_reading ()=0
	Stops reading messages until calling request_messages.
virtual void	begin_message ()=0
	Prepares the layer for an outgoing message, e.g., by allocating an output buffer as necessary.
virtual byte_buffer &	message_buffer ()=0
	Returns a reference to the buffer for assembling the current message.
virtual bool	end_message ()=0
	Seals and prepares a message for transfer.
Public Member Functions inherited from caf::net::generic_lower_layer
multiplexer &	mpx () noexcept
	Returns the multiplexer instance that executes this protocol stack.
virtual socket_manager *	manager () noexcept=0
	Returns the manager that owns this layer.
virtual bool	can_send_more () const noexcept=0
	Queries whether the output device can accept more data straight away.
virtual bool	is_reading () const noexcept=0
	Queries whether the lower layer is currently reading from its input device.
virtual void	write_later ()=0
	Triggers a write callback after the write device signals downstream capacity.
virtual void	shutdown ()=0
	Shuts down any connection or session gracefully.
virtual void	shutdown (const error &reason)
	Shuts down any connection or session due to an error.

Detailed Description

Implements length-prefix framing for discretizing a Byte stream into messages of varying size.

The framing uses 4 Bytes for the length prefix, but messages (including the 4 Bytes for the length prefix) are limited to a maximum size of INT32_MAX. This limitation comes from the POSIX API (recv) on 32-bit platforms.

---

The documentation for this class was generated from the following files:

• libcaf_net/caf/net/lp/framing.hpp
• libcaf_net/caf/net/lp/framing.cpp
