caf::net::socket_manager Class Reference

Manages the lifetime of a single socket and handles any I/O events on it. More...

#include <socket_manager.hpp>

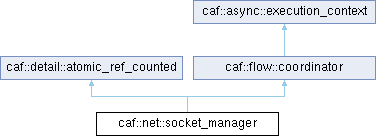

Inheritance diagram for caf::net::socket_manager:

Public Types
using	event_handler_ptr = std::unique_ptr<socket_event_layer>
Public Types inherited from caf::flow::coordinator
using	steady_time_point = std::chrono::steady_clock::time_point
	A time point of the monotonic clock.

Public Member Functions
virtual socket	handle () const =0
	Returns the handle for the managed socket.
multiplexer &	mpx () const
	Returns the owning multiplexer instance.
virtual multiplexer *	mpx_ptr () const noexcept=0
	Returns a pointer to the owning multiplexer instance.
virtual bool	is_reading () const noexcept=0
	Queries whether the manager is registered for reading.
virtual bool	is_writing () const noexcept=0
	Queries whether the manager is registered for writing.
virtual void	register_reading ()=0
	Registers the manager for read operations.
virtual void	register_writing ()=0
	Registers the manager for write operations.
virtual void	deregister_reading ()=0
	Deregisters the manager from read operations.
virtual void	deregister_writing ()=0
	Deregisters the manager from write operations.
virtual void	deregister ()=0
	Deregisters the manager from both read and write operations.
virtual void	add_cleanup_listener (action fn)=0
	Schedules a call to fn on the multiplexer when this socket manager cleans up its state.
virtual void	schedule_handover ()=0
	Schedules a call to do_handover on the handler.
virtual void	shutdown ()=0
	Shuts down this socket manager.
virtual error	start ()=0
	Starts the manager and its all of its processing layers.
virtual void	handle_read_event ()=0
	Called whenever the socket received new data.
virtual void	handle_write_event ()=0
	Called whenever the socket is allowed to send data.
virtual void	handle_error (sec code)=0
	Called when the remote side becomes unreachable due to an error or after calling dispose.
Public Member Functions inherited from caf::detail::atomic_ref_counted
	atomic_ref_counted (const atomic_ref_counted &)
atomic_ref_counted &	operator= (const atomic_ref_counted &)
void	ref () const noexcept
	Increases reference count by one.
void	deref () const noexcept
	Decreases reference count by one and calls request_deletion when it drops to zero.
bool	unique () const noexcept
	Queries whether there is exactly one reference.
size_t	get_reference_count () const noexcept
	Queries the current reference count for this object.
Public Member Functions inherited from caf::flow::coordinator
observable_builder	make_observable ()
	Returns a factory object for new observable objects on this coordinator.
template<class Impl , class... Args>
std::enable_if_t< std::is_base_of_v< coordinated, Impl >, intrusive_ptr< Impl > >	add_child (std::in_place_type_t< Impl >, Args &&... args)
	Creates a new coordinated object on this coordinator.
template<class Impl , class... Args>
std::enable_if_t< std::is_base_of_v< coordinated, Impl >, typename Impl::handle_type >	add_child_hdl (std::in_place_type_t< Impl > token, Args &&... args)
	Like add_child, but wraps the result in a handle type.
virtual void	release_later (coordinated_ptr &child)=0
	Resets child and releases the reference count of the coordinated object at the end of the current cycle.
template<class T >
std::enable_if_t< std::is_base_of_v< coordinated, T > >	release_later (intrusive_ptr< T > &child)
	Resets child and releases the reference count of the coordinated object at the end of the current cycle.
template<class Handle >
std::enable_if< Handle::holds_coordinated >	release_later (Handle &hdl)
	Resets hdl and releases the reference count of the coordinated object at the end of the current cycle.
virtual steady_time_point	steady_time ()=0
	Returns the current time on the monotonic clock of this coordinator.
virtual void	delay (action what)=0
	Delays execution of an action until all pending actions were executed.
template<class F >
void	delay_fn (F &&what)
	Delays execution of an action until all pending actions were executed.
virtual disposable	delay_until (steady_time_point abs_time, action what)=0
	Delays execution of an action with an absolute timeout.
template<class F >
disposable	delay_until_fn (steady_time_point abs_time, F &&what)
	Delays execution of an action until all pending actions were executed.
disposable	delay_for (timespan rel_time, action what)
	Delays execution of an action with a relative timeout.
template<class F >
disposable	delay_for_fn (timespan rel_time, F &&what)
	Delays execution of an action with a relative timeout.
Public Member Functions inherited from caf::async::execution_context
virtual void	ref_execution_context () const noexcept=0
	Increases the reference count of the execution_context.
virtual void	deref_execution_context () const noexcept=0
	Decreases the reference count of the execution context and destroys the object if necessary.
virtual void	schedule (action what)=0
	Schedules what to run on the event loop of the execution context.
template<class F >
void	schedule_fn (F &&what)
	Schedules what to run on the event loop of the execution context.
virtual void	watch (disposable what)=0
	Asks the coordinator to keep its event loop running until what becomes disposed since it depends on external events or produces events that are visible to outside observers.

Static Public Member Functions
static socket_manager_ptr	make (multiplexer *mpx, event_handler_ptr handler)

Friends
class	abstract_actor_shell

Related Symbols
(Note that these are not member symbols.)
using	socket_manager_ptr = intrusive_ptr<socket_manager>
CAF_NET_EXPORT void	intrusive_ptr_add_ref (socket_manager *ptr) noexcept
CAF_NET_EXPORT void	intrusive_ptr_release (socket_manager *ptr) noexcept
Related Symbols inherited from caf::flow::coordinator
using	coordinator_ptr = intrusive_ptr<coordinator>
Related Symbols inherited from caf::async::execution_context
using	execution_context_ptr = intrusive_ptr<execution_context>
void	intrusive_ptr_add_ref (const execution_context *ptr) noexcept
void	intrusive_ptr_release (const execution_context *ptr) noexcept

Additional Inherited Members
Protected Attributes inherited from caf::detail::atomic_ref_counted
std::atomic< size_t >	rc_

Detailed Description

Manages the lifetime of a single socket and handles any I/O events on it.

Member Function Documentation

add_cleanup_listener()

virtual void caf::net::socket_manager::add_cleanup_listener ( action fn )

pure virtual

Schedules a call to fn on the multiplexer when this socket manager cleans up its state.

Note

Must be called before start.

handle_error()

virtual void caf::net::socket_manager::handle_error ( sec code )

pure virtual

Called when the remote side becomes unreachable due to an error or after calling dispose.

Parameters

code	The error code as reported by the operating system or sec::disposed.

---

The documentation for this class was generated from the following files:

• libcaf_net/caf/net/socket_manager.hpp
• libcaf_net/caf/net/socket_manager.cpp
