caf::io::network::stream Class Reference

A stream capable of both reading and writing. More...

#include <stream.hpp>

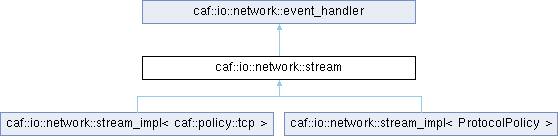

Inheritance diagram for caf::io::network::stream:

Public Types
using	manager_ptr = intrusive_ptr<stream_manager>
	A smart pointer to a stream manager.

Public Member Functions
	stream (default_multiplexer &backend_ref, native_socket sockfd)
void	start (stream_manager *mgr)
	Starts reading data from the socket, forwarding incoming data to mgr.
void	activate (stream_manager *mgr)
	Activates the stream.
void	configure_read (receive_policy::config config)
	Configures how much data will be provided for the next consume callback.
void	write (const void *buf, size_t num_bytes)
	Copies data to the write buffer.
byte_buffer &	wr_buf ()
	Returns the write buffer of this stream.
byte_buffer &	rd_buf ()
	Returns the read buffer of this stream.
void	flush (const manager_ptr &mgr)
	Sends the content of the write buffer, calling the io_failure member function of mgr in case of an error.
void	removed_from_loop (operation op) override
	Callback to signalize that this handler has been removed from the event loop for operations of type op.
void	graceful_shutdown () override
	Shuts down communication on the managed socket, eventually removing this event handler from the I/O loop.
void	force_empty_write (const manager_ptr &mgr)
	Forces this stream to subscribe to write events if no data is in the write buffer.
Public Member Functions inherited from caf::io::network::event_handler
	event_handler (default_multiplexer &dm, native_socket sockfd)
virtual void	handle_event (operation op)=0
	Returns true once the requested operation is done, i.e., to signalize the multiplexer to remove this handler.
native_socket	fd () const
	Returns the native socket handle for this handler.
default_multiplexer &	backend ()
	Returns the multiplexer this acceptor belongs to.
int	eventbf () const
	Returns the bit field storing the subscribed events.
void	eventbf (int value)
	Sets the bit field storing the subscribed events.
bool	read_channel_closed () const
	Checks whether close_read_channel has been called.
void	passivate ()
	Removes the file descriptor from the event loop of the parent.
bool	ack_writes ()
	Returns whether this event handlers signals successful writes to its parent actor.
void	ack_writes (bool x)
	Sets whether this event handlers signals successful writes to its parent actor.

Protected Member Functions
template<class Policy >
void	handle_event_impl (io::network::operation op, Policy &policy)
Protected Member Functions inherited from caf::io::network::event_handler
void	activate ()
	Adds the file descriptor to the event loop of the parent.
void	set_fd_flags ()
	Sets flags for asynchronous event handling on the socket handle.

Additional Inherited Members
Protected Attributes inherited from caf::io::network::event_handler
native_socket	fd_
state	state_
int	eventbf_
default_multiplexer &	backend_

Detailed Description

A stream capable of both reading and writing.

The stream's input data is forwarded to its manager.

Member Function Documentation

configure_read()

void caf::io::network::stream::configure_read

(

receive_policy::config

config

)

Configures how much data will be provided for the next consume callback.

Warning

Must not be called outside the IO multiplexers event loop once the stream has been started.

flush()

void caf::io::network::stream::flush

(

const manager_ptr &

mgr

)

Sends the content of the write buffer, calling the io_failure member function of mgr in case of an error.

Warning

Must not be called outside the IO multiplexers event loop once the stream has been started.

graceful_shutdown()

void caf::io::network::stream::graceful_shutdown ( )

overridevirtual

Shuts down communication on the managed socket, eventually removing this event handler from the I/O loop.

Implements caf::io::network::event_handler.

rd_buf()

byte_buffer & caf::io::network::stream::rd_buf

(

)

Returns the read buffer of this stream.

Warning

Must not be modified outside the IO multiplexers event loop once the stream has been started.

removed_from_loop()

void caf::io::network::stream::removed_from_loop ( operation op )

overridevirtual

Callback to signalize that this handler has been removed from the event loop for operations of type op.

Implements caf::io::network::event_handler.

wr_buf()

byte_buffer & caf::io::network::stream::wr_buf

(

)

Returns the write buffer of this stream.

Warning

Must not be modified outside the IO multiplexers event loop once the stream has been started.

write()

void caf::io::network::stream::write	(	const void *	buf,
		size_t	num_bytes )

Copies data to the write buffer.

Warning

Not thread safe.

---

The documentation for this class was generated from the following files:

• libcaf_io/caf/io/network/stream.hpp
• libcaf_io/caf/io/network/stream.cpp
