caf::io::network::event_handler Class Reference

A socket I/O event handler. More...

#include <event_handler.hpp>

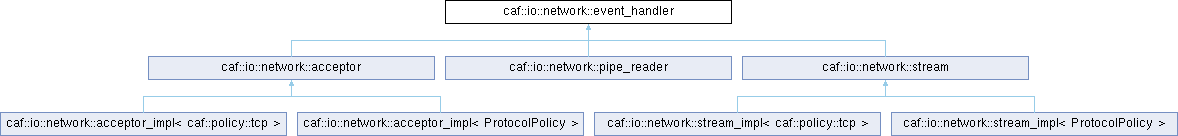

Inheritance diagram for caf::io::network::event_handler:

Classes
struct	state
	Stores various status flags and user-defined config parameters. More...

Public Member Functions
	event_handler (default_multiplexer &dm, native_socket sockfd)
virtual void	handle_event (operation op)=0
	Returns true once the requested operation is done, i.e., to signalize the multiplexer to remove this handler.
virtual void	removed_from_loop (operation op)=0
	Callback to signalize that this handler has been removed from the event loop for operations of type op.
virtual void	graceful_shutdown ()=0
	Shuts down communication on the managed socket, eventually removing this event handler from the I/O loop.
native_socket	fd () const
	Returns the native socket handle for this handler.
default_multiplexer &	backend ()
	Returns the multiplexer this acceptor belongs to.
int	eventbf () const
	Returns the bit field storing the subscribed events.
void	eventbf (int value)
	Sets the bit field storing the subscribed events.
bool	read_channel_closed () const
	Checks whether close_read_channel has been called.
void	passivate ()
	Removes the file descriptor from the event loop of the parent.
bool	ack_writes ()
	Returns whether this event handlers signals successful writes to its parent actor.
void	ack_writes (bool x)
	Sets whether this event handlers signals successful writes to its parent actor.

Protected Member Functions
void	activate ()
	Adds the file descriptor to the event loop of the parent.
void	set_fd_flags ()
	Sets flags for asynchronous event handling on the socket handle.

Protected Attributes
native_socket	fd_
state	state_
int	eventbf_
default_multiplexer &	backend_

Detailed Description

A socket I/O event handler.

Member Function Documentation

graceful_shutdown()

virtual void caf::io::network::event_handler::graceful_shutdown ( )

pure virtual

Shuts down communication on the managed socket, eventually removing this event handler from the I/O loop.

Implemented in caf::io::network::acceptor, caf::io::network::pipe_reader, and caf::io::network::stream.

handle_event()

virtual void caf::io::network::event_handler::handle_event ( operation op )

pure virtual

Returns true once the requested operation is done, i.e., to signalize the multiplexer to remove this handler.

The handler remains in the event loop as long as it returns false.

Implemented in caf::io::network::acceptor_impl< ProtocolPolicy >, caf::io::network::acceptor_impl< caf::policy::tcp >, caf::io::network::datagram_handler_impl< ProtocolPolicy >, caf::io::network::datagram_handler_impl< caf::policy::udp >, caf::io::network::pipe_reader, caf::io::network::stream_impl< ProtocolPolicy >, and caf::io::network::stream_impl< caf::policy::tcp >.

removed_from_loop()

virtual void caf::io::network::event_handler::removed_from_loop ( operation op )

pure virtual

Callback to signalize that this handler has been removed from the event loop for operations of type op.

Implemented in caf::io::network::acceptor, caf::io::network::pipe_reader, and caf::io::network::stream.

---

The documentation for this class was generated from the following files:

• libcaf_io/caf/io/network/event_handler.hpp
• libcaf_io/caf/io/network/event_handler.cpp
