Base class for all actor implementations. More...

#include <abstract_actor.hpp>

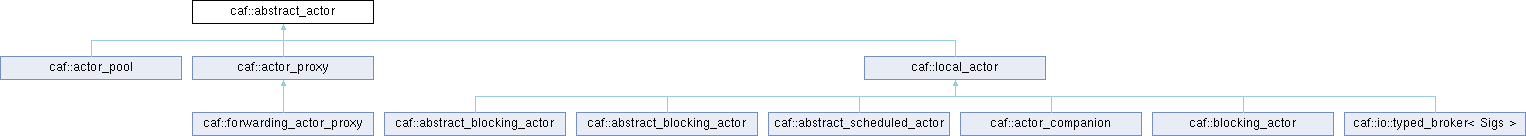

Inheritance diagram for caf::abstract_actor:

Public Member Functions
	abstract_actor (const abstract_actor &)=delete

abstract_actor &	operator= (const abstract_actor &)=delete

void	attach (attachable_ptr ptr)
	Attaches `ptr` to this actor.

template<class F >
void	attach_functor (F f)
	Convenience function that attaches the functor `f` to this actor.

size_t	detach (const attachable::token &what)
	Detaches the first attached object that matches `what`.

void	link_to (const actor_addr &other)
	Links this actor to `other`.

template<class ActorHandle >
void	link_to (const ActorHandle &other)
	Links this actor to `other`.

void	unlink_from (const actor_addr &other)
	Unlinks this actor from `addr`.

template<class ActorHandle >
void	unlink_from (const ActorHandle &other)
	Links this actor to `hdl`.

virtual const char *	name () const =0
	Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

virtual std::set< std::string >	message_types () const
	Returns the set of accepted messages types as strings or an empty set if this actor is untyped.

actor_id	id () const noexcept
	Returns the ID of this actor.

node_id	node () const noexcept
	Returns the node this actor is living on.

actor_system &	home_system () const noexcept
	Returns the system that created this actor (or proxy).

actor_control_block *	ctrl () const
	Returns the control block for this actor.

actor_addr	address () const noexcept
	Returns the logical actor address.

virtual bool	enqueue (mailbox_element_ptr what, scheduler *sched)=0
	Enqueues a new message wrapped in a `mailbox_element` to the actor.

virtual mailbox_element *	peek_at_next_mailbox_element ()
	Called by the testing DSL to peek at the next element in the mailbox.

bool	cleanup (error &&reason, scheduler *sched)
	Called by the runtime system to perform cleanup actions for this actor.

Protected Member Functions
virtual void	on_unreachable ()
	Called on actor if the last strong reference to it expired without a prior call to `quit(exit_reason::not_exited)`.

virtual void	on_cleanup (const error &reason)
	Called from `cleanup` to perform extra cleanup actions for this actor.

int	flags () const

void	flags (int new_value)

bool	is_terminated () const noexcept
	Checks whether this actor has terminated.

	abstract_actor (actor_config &cfg)

void	attach_impl (attachable_ptr &ptr)

size_t	detach_impl (const attachable::token &what, bool stop_on_hit=false, bool dry_run=false)

void	add_link (abstract_actor *other)
	Causes the actor to establish a link to `other`.

void	remove_link (abstract_actor *other)
	Causes the actor to remove any established link to `other`.

virtual bool	add_backlink (abstract_actor *other)
	Adds an entry to `other` to the link table of this actor.

virtual bool	remove_backlink (abstract_actor *other)
	Removes an entry to `other` from the link table of this actor.

Protected Attributes
std::atomic< int >	flags_
	Holds several state and type flags.

std::mutex	mtx_
	Guards members that may be subject to concurrent access .

std::condition_variable	cv_
	Allows blocking actors to actively wait for incoming messages.

error	fail_state_
	Stores the user-defined exit reason if this actor has finished execution.

attachable_ptr	attachables_head_
	Points to the first attachable in the linked list of attachables (if any).

Friends
template<class T >
class	actor_storage

template<class >
class	caf::io::basp::remote_message_handler

CAF_CORE_EXPORT void	intrusive_ptr_release (actor_control_block *x)

Related Symbols
(Note that these are not member symbols.)
using	actor_id = uint64_t
	A unique actor ID.

Detailed Description

Base class for all actor implementations.

Member Function Documentation

◆ add_backlink()

bool caf::abstract_actor::add_backlink ( abstract_actor * other )

protectedvirtual

Adds an entry to other to the link table of this actor.

Warning: Must be called inside a critical section, i.e., while holding mtx_.

Reimplemented in caf::forwarding_actor_proxy.

◆ attach()

void caf::abstract_actor::attach ( attachable_ptr ptr )

Attaches ptr to this actor.

The actor will call ptr->detach(...) on exit, or immediately if it already finished execution.

◆ attach_functor()

template<class F >

void caf::abstract_actor::attach_functor ( F f )

Convenience function that attaches the functor f to this actor.

The actor executes f() on exit or immediately if it is not running.

◆ cleanup()

bool caf::abstract_actor::cleanup	(	error &&	reason,
		scheduler *	sched )

Called by the runtime system to perform cleanup actions for this actor.

Subtypes should always call this member function when overriding it. This member function is thread-safe, and if the actor has already exited upon invocation, nothing is done. The return value of this member function is ignored by scheduled actors.

◆ enqueue()

virtual bool caf::abstract_actor::enqueue	(	mailbox_element_ptr	what,
		scheduler *	sched )

pure virtual

Enqueues a new message wrapped in a mailbox_element to the actor.

This enqueue variant allows to define forwarding chains.

Returns: true if the message has added to the mailbox, false otherwise. In the latter case, the actor terminated and the message has been dropped. Once this function returns false, it returns false for all future invocations.

Note: The returned value is purely informational and may be used to discard actor handles early. Messages may still get dropped later even if this function returns true. In particular when dealing with remote actors.

Implemented in caf::actor_companion, caf::actor_pool, caf::blocking_actor, and caf::forwarding_actor_proxy.

◆ name()

virtual const char * caf::abstract_actor::name ( ) const

pure virtual

Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

The default implementation simply returns "actor".

Implemented in caf::actor_pool, caf::blocking_actor, caf::forwarding_actor_proxy, and caf::local_actor.

◆ on_cleanup()

void caf::abstract_actor::on_cleanup ( const error & reason )

protectedvirtual

Called from cleanup to perform extra cleanup actions for this actor.

Reimplemented in caf::actor_pool, and caf::local_actor.

◆ on_unreachable()

void caf::abstract_actor::on_unreachable ( )

protectedvirtual

Called on actor if the last strong reference to it expired without a prior call to quit(exit_reason::not_exited).

Precondition: getf(is_terminated_flag) == false

Postcondition: getf(is_terminated_flag) == true

◆ peek_at_next_mailbox_element()

mailbox_element * caf::abstract_actor::peek_at_next_mailbox_element ( )

virtual

Called by the testing DSL to peek at the next element in the mailbox.

Do not call this function in production code! The default implementation always returns nullptr.

Returns: A pointer to the next mailbox element or nullptr if the mailbox is empty or the actor does not have a mailbox.

Reimplemented in caf::blocking_actor.

◆ remove_backlink()

bool caf::abstract_actor::remove_backlink ( abstract_actor * other )

protectedvirtual

Removes an entry to other from the link table of this actor.

Warning: Must be called inside a critical section, i.e., while holding mtx_.

Reimplemented in caf::forwarding_actor_proxy.

Member Data Documentation

◆ mtx_

std::mutex caf::abstract_actor::mtx_

mutableprotected

Guards members that may be subject to concurrent access .

For example, exit_state_, attachables_, and links_.

The documentation for this class was generated from the following files:

libcaf_core/caf/abstract_actor.hpp
libcaf_core/caf/abstract_actor.cpp
