caf::io::abstract_broker Class Reference

A broker mediates between actor systems and other components in the network. More...

#include <abstract_broker.hpp>

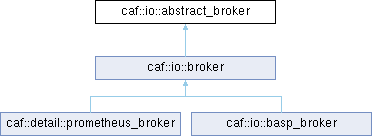

Inheritance diagram for caf::io::abstract_broker:

Public Member Functions
	abstract_broker (abstract_broker &&)=delete
	abstract_broker (const abstract_broker &&)=delete
abstract_broker &	operator= (abstract_broker &&)=delete
abstract_broker &	operator= (const abstract_broker &&)=delete
bool	enqueue (mailbox_element_ptr, execution_unit *) override
bool	enqueue (strong_actor_ptr, message_id, message, execution_unit *) override
void	launch (execution_unit *eu, bool lazy, bool hide) override
bool	cleanup (error &&reason, execution_unit *host) override
resume_result	resume (execution_unit *, size_t) override
template<class Handle >
void	halt (Handle hdl)
	Suspends activities on hdl unconditionally.
template<class Handle >
void	trigger (Handle hdl)
	Allows activities on hdl unconditionally (default).
template<class Handle >
void	trigger (Handle hdl, size_t num_events)
	Allows num_events activities on hdl.
void	configure_read (connection_handle hdl, receive_policy::config cfg)
	Modifies the receive policy for a given connection.
void	ack_writes (connection_handle hdl, bool enable)
	Enables or disables write notifications for a given connection.
byte_buffer &	wr_buf (connection_handle hdl)
	Returns the write buffer for a given connection.
void	write (connection_handle hdl, size_t bs, const void *buf)
	Writes data into the buffer for a given connection.
void	write (connection_handle hdl, span< const std::byte > buf)
	Writes buf into the buffer for a given connection.
void	flush (connection_handle hdl)
	Sends the content of the buffer for a given connection.
void	ack_writes (datagram_handle hdl, bool enable)
	Enables or disables write notifications for a given datagram socket.
byte_buffer &	wr_buf (datagram_handle hdl)
	Returns the write buffer for a given sink.
void	enqueue_datagram (datagram_handle, byte_buffer)
	Enqueue a buffer to be sent as a datagram via a given endpoint.
void	write (datagram_handle hdl, size_t data_size, const void *data)
	Writes data into the buffer of a given sink.
void	flush (datagram_handle hdl)
	Sends the content of the buffer to a UDP endpoint.
middleman &	parent ()
	Returns the middleman instance this broker belongs to.
void	add_scribe (scribe_ptr ptr)
	Adds the uninitialized scribe instance ptr to this broker.
connection_handle	add_scribe (network::native_socket fd)
	Creates and assigns a new scribe from given native socked fd.
expected< connection_handle >	add_tcp_scribe (const std::string &host, uint16_t port)
	Tries to connect to host on given port and creates a new scribe describing the connection afterwards.
void	move_scribe (scribe_ptr ptr)
	Moves the initialized scribe instance ptr from another broker to this broker.
void	add_doorman (doorman_ptr ptr)
	Adds a doorman instance to this broker.
accept_handle	add_doorman (network::native_socket fd)
	Creates and assigns a new doorman from given native socked fd.
void	move_doorman (doorman_ptr ptr)
	Adds a doorman instance to this broker.
expected< std::pair< accept_handle, uint16_t > >	add_tcp_doorman (uint16_t port=0, const char *in=nullptr, bool reuse_addr=false)
	Tries to open a local port and creates a doorman managing it on success.
void	add_datagram_servant (datagram_servant_ptr ptr)
	Adds a datagram_servant to this broker.
void	add_hdl_for_datagram_servant (datagram_servant_ptr ptr, datagram_handle hdl)
	Adds the datagram_servant under an additional hdl.
datagram_handle	add_datagram_servant (network::native_socket fd)
	Creates and assigns a new datagram_servant from a given socket fd.
datagram_handle	add_datagram_servant_for_endpoint (network::native_socket fd, const network::ip_endpoint &ep)
	Creates and assigns a new datagram_servant from a given socket fd for the remote endpoint ep.
expected< datagram_handle >	add_udp_datagram_servant (const std::string &host, uint16_t port)
	Creates a new datagram_servant for the remote endpoint host and port.
expected< std::pair< datagram_handle, uint16_t > >	add_udp_datagram_servant (uint16_t port=0, const char *in=nullptr, bool reuse_addr=false)
	Tries to open a local port and creates a datagram_servant managing it on success.
void	move_datagram_servant (datagram_servant_ptr ptr)
	Moves an initialized datagram_servant instance ptr from another broker to this one.
std::string	remote_addr (connection_handle hdl)
	Returns the remote address associated with hdl or empty string if hdl is invalid.
uint16_t	remote_port (connection_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
std::string	local_addr (accept_handle hdl)
	Returns the local address associated with hdl or empty string if hdl is invalid.
uint16_t	local_port (accept_handle hdl)
	Returns the local port associated with hdl or 0 if hdl is invalid.
accept_handle	hdl_by_port (uint16_t port)
	Returns the handle associated with given local port or none.
datagram_handle	datagram_hdl_by_port (uint16_t port)
	Returns the dgram handle associated with given local port or none.
std::string	remote_addr (datagram_handle hdl)
	Returns the remote address associated with hdl or an empty string if hdl is invalid.
uint16_t	remote_port (datagram_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
uint16_t	local_port (datagram_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
bool	remove_endpoint (datagram_handle hdl)
	Remove the endpoint hdl from the broker.
void	close_all ()
	Closes all connections and acceptors.
template<class Handle >
bool	close (Handle hdl)
	Closes the connection or acceptor identified by handle.
template<class Handle >
bool	valid (Handle hdl)
	Checks whether hdl is assigned to broker.
const char *	name () const override
subtype_t	subtype () const override
size_t	num_connections () const noexcept
	Returns the number of open connections.
size_t	num_doormen () const noexcept
	Returns the number of attached doorman for accepting incoming connections.
std::vector< connection_handle >	connections () const
	Returns all handles of all scribe instances attached to this broker.
network::multiplexer &	backend ()
	Returns the multiplexer running this broker.

Protected Types
using	doorman_map = std::unordered_map< accept_handle, intrusive_ptr< doorman > >
using	scribe_map = std::unordered_map< connection_handle, intrusive_ptr< scribe > >
using	datagram_servant_map = std::unordered_map< datagram_handle, intrusive_ptr< datagram_servant > >

Protected Member Functions
void	init_broker ()
	abstract_broker (actor_config &cfg)
template<class Handle >
auto	by_id (Handle hdl) -> decltype(ptr_of(hdl))
	Returns a scribe or doorman identified by hdl.

Friends
class	scribe
class	doorman
class	datagram_servant

Detailed Description

A broker mediates between actor systems and other components in the network.

Member Function Documentation

add_tcp_doorman()

expected< std::pair< accept_handle, uint16_t > > caf::io::abstract_broker::add_tcp_doorman	(	uint16_t	port = 0,
		const char *	in = nullptr,
		bool	reuse_addr = false
	)

Tries to open a local port and creates a doorman managing it on success.

If port == 0, then the broker will ask the operating system to pick a random port.

Returns

The handle of the new doorman and the assigned port.

add_tcp_scribe()

expected< connection_handle > caf::io::abstract_broker::add_tcp_scribe	(	const std::string &	host,
		uint16_t	port
	)

Tries to connect to host on given port and creates a new scribe describing the connection afterwards.

Returns

The handle of the new scribe on success.

add_udp_datagram_servant() [1/2]

expected< datagram_handle > caf::io::abstract_broker::add_udp_datagram_servant	(	const std::string &	host,
		uint16_t	port
	)

Creates a new datagram_servant for the remote endpoint host and port.

Returns

The handle to the new datagram_servant.

add_udp_datagram_servant() [2/2]

expected< std::pair< datagram_handle, uint16_t > > caf::io::abstract_broker::add_udp_datagram_servant	(	uint16_t	port = 0,
		const char *	in = nullptr,
		bool	reuse_addr = false
	)

Tries to open a local port and creates a datagram_servant managing it on success.

If port == 0, then the broker will ask the operating system to pick a random port.

Returns

The handle of the new datagram_servant and the assigned port.

close()

template<class Handle >

bool caf::io::abstract_broker::close

(

Handle

hdl

)

Closes the connection or acceptor identified by handle.

Unwritten data will still be send.

configure_read()

void caf::io::abstract_broker::configure_read	(	connection_handle	hdl,
		receive_policy::config	cfg
	)

Modifies the receive policy for a given connection.

Parameters

hdl	Identifies the affected connection.
cfg	Contains the new receive policy.

---

The documentation for this class was generated from the following files:

• libcaf_io/caf/io/abstract_broker.hpp
• libcaf_io/caf/io/abstract_broker.cpp
