caf::scheduler::abstract_coordinator Class Reference

A coordinator creates the workers, manages delayed sends and the central printer instance for aout. More...

#include <abstract_coordinator.hpp>

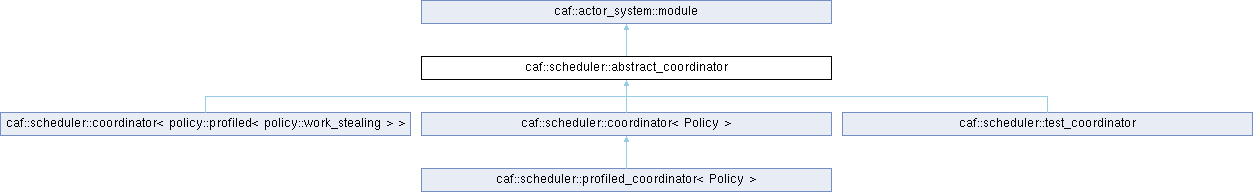

Inheritance diagram for caf::scheduler::abstract_coordinator:

Public Types
enum	utility_actor_id : size_t {   printer_id ,   max_id }
Public Types inherited from caf::actor_system::module
enum	id_t {   scheduler ,   middleman ,   openssl_manager ,   network_manager ,   num_ids }

Public Member Functions
	abstract_coordinator (actor_system &sys)
actor	printer () const
	Returns a handle to the central printing actor.
size_t	num_utility_actors () const
	Returns the number of utility actors.
virtual void	enqueue (resumable *what)=0
	Puts what into the queue of a randomly chosen worker.
actor_system &	system ()
const actor_system_config &	config () const
size_t	max_throughput () const
size_t	num_workers () const
virtual bool	detaches_utility_actors () const
	Returns true if this scheduler detaches its utility actors.
void	start () override
	Starts any background threads needed by the module.
void	init (actor_system_config &cfg) override
	Allows the module to change the configuration of the actor system during startup.
id_t	id () const override
	Returns the identifier of this module.
void *	subtype_ptr () override
	Returns a pointer to the subtype.
virtual actor_clock &	clock () noexcept=0
Public Member Functions inherited from caf::actor_system::module
const char *	name () const noexcept
	Returns the human-redable name of the module.
virtual void	start ()=0
	Starts any background threads needed by the module.
virtual void	stop ()=0
	Stops all background threads of the module.
virtual void	init (actor_system_config &)=0
	Allows the module to change the configuration of the actor system during startup.
virtual id_t	id () const =0
	Returns the identifier of this module.
virtual void *	subtype_ptr ()=0
	Returns a pointer to the subtype.

Static Public Member Functions
static void	cleanup_and_release (resumable *)
static size_t	default_thread_count () noexcept

Protected Member Functions
void	stop_actors ()

Protected Attributes
std::atomic< size_t >	next_worker_
	ID of the worker receiving the next enqueue (round-robin dispatch).
size_t	max_throughput_
	Number of messages each actor is allowed to consume per resume.
size_t	num_workers_
	Configured number of workers.
std::array< actor, max_id >	utility_actors_
	Background workers, e.g., printer.
actor_system &	system_
	Reference to the host system.

Detailed Description

A coordinator creates the workers, manages delayed sends and the central printer instance for aout.

It also forwards sends from detached workers or non-actor threads to randomly chosen workers.

Member Function Documentation

detaches_utility_actors()

virtual bool caf::scheduler::abstract_coordinator::detaches_utility_actors ( ) const

virtual

Returns true if this scheduler detaches its utility actors.

Reimplemented in caf::scheduler::test_coordinator.

enqueue()

virtual void caf::scheduler::abstract_coordinator::enqueue ( resumable *  what )

pure virtual

Puts what into the queue of a randomly chosen worker.

Implemented in caf::scheduler::coordinator< Policy >, caf::scheduler::coordinator< policy::profiled< policy::work_stealing > >, and caf::scheduler::test_coordinator.

id()

id_t caf::scheduler::abstract_coordinator::id ( ) const

overridevirtual

Returns the identifier of this module.

Implements caf::actor_system::module.

init()

void caf::scheduler::abstract_coordinator::init ( actor_system_config &  )

overridevirtual

Allows the module to change the configuration of the actor system during startup.

Implements caf::actor_system::module.

Reimplemented in caf::scheduler::profiled_coordinator< Policy >.

start()

void caf::scheduler::abstract_coordinator::start ( )

overridevirtual

Starts any background threads needed by the module.

Implements caf::actor_system::module.

Reimplemented in caf::scheduler::coordinator< Policy >, caf::scheduler::coordinator< policy::profiled< policy::work_stealing > >, caf::scheduler::profiled_coordinator< Policy >, and caf::scheduler::test_coordinator.

subtype_ptr()

void * caf::scheduler::abstract_coordinator::subtype_ptr ( )

overridevirtual

Returns a pointer to the subtype.

Implements caf::actor_system::module.

---

The documentation for this class was generated from the following file:

• libcaf_core/caf/scheduler/abstract_coordinator.hpp
