caf::actor_system::module Class Referenceabstract

An (optional) component of the actor system. More...

#include <actor_system.hpp>

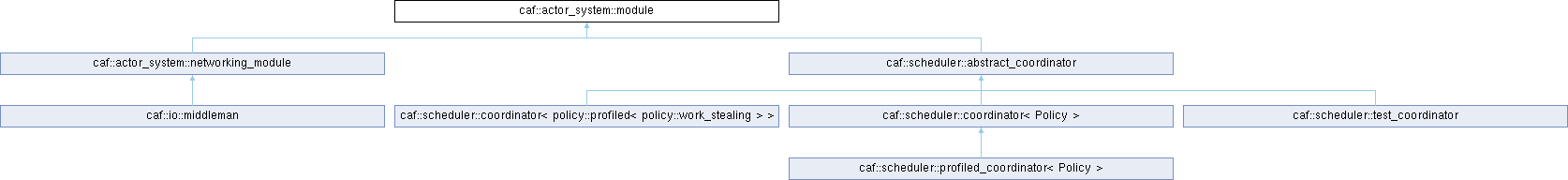

Inheritance diagram for caf::actor_system::module:
caf::actor_system::networking_module caf::scheduler::abstract_coordinator caf::io::middleman caf::scheduler::coordinator< policy::profiled< policy::work_stealing > > caf::scheduler::coordinator< Policy > caf::scheduler::test_coordinator caf::scheduler::profiled_coordinator< Policy >

Public Types

enum  id_t {
  scheduler ,
  middleman ,
  openssl_manager ,
  network_manager ,
  num_ids
}


Public Member Functions

const char * name () const noexcept
 Returns the human-redable name of the module.

virtual void start ()=0
 Starts any background threads needed by the module.

virtual void stop ()=0
 Stops all background threads of the module.

virtual void init (actor_system_config &)=0
 Allows the module to change the configuration of the actor system during startup.

virtual id_t id () const =0
 Returns the identifier of this module.

virtual void * subtype_ptr ()=0
 Returns a pointer to the subtype.


Detailed Description

An (optional) component of the actor system.

Member Function Documentation

◆ id()

virtual id_t caf::actor_system::module::id ( ) const
pure virtual

Returns the identifier of this module.

Implemented in caf::scheduler::abstract_coordinator, and caf::io::middleman.

◆ init()

virtual void caf::actor_system::module::init ( actor_system_config )
pure virtual

Allows the module to change the configuration of the actor system during startup.

Implemented in caf::io::middleman, caf::scheduler::abstract_coordinator, and caf::scheduler::profiled_coordinator< Policy >.

◆ start()

virtual void caf::actor_system::module::start ( )
pure virtual

◆ stop()

virtual void caf::actor_system::module::stop ( )
pure virtual

◆ subtype_ptr()

virtual void * caf::actor_system::module::subtype_ptr ( )
pure virtual

Returns a pointer to the subtype.

Implemented in caf::scheduler::abstract_coordinator, and caf::io::middleman.


The documentation for this class was generated from the following file:
