Base class for all actor implementations. More...

#include <monitorable_actor.hpp>

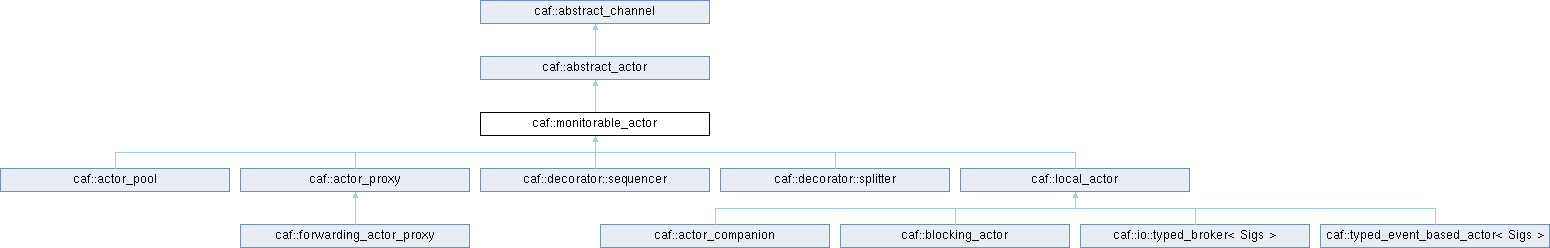

Inheritance diagram for caf::monitorable_actor:

Public Member Functions
virtual const char *	name () const
	Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

void	attach (attachable_ptr ptr) override
	Attaches `ptr` to this actor.

size_t	detach (const attachable::token &what) override
	Detaches the first attached object that matches `what`.

void	link_to (const actor_addr &x)
	Links this actor to `x`.

template<class ActorHandle >
void	link_to (const ActorHandle &x)
	Links this actor to `x`.

void	unlink_from (const actor_addr &x)
	Unlinks this actor from `x`.

template<class ActorHandle >
void	unlink_from (const ActorHandle &x)
	Links this actor to `x`.

Public Member Functions inherited from caf::abstract_actor
actor_control_block *	ctrl () const

	abstract_actor (const abstract_actor &)=delete

abstract_actor &	operator= (const abstract_actor &)=delete

virtual void	on_destroy ()
	Cleans up any remaining state before the destructor is called.

bool	enqueue (strong_actor_ptr sender, message_id mid, message msg, execution_unit *host) override
	Enqueues a new message without forwarding stack to the channel.

virtual bool	enqueue (mailbox_element_ptr what, execution_unit *host)=0
	Enqueues a new message wrapped in a `mailbox_element` to the actor.

virtual void	attach (attachable_ptr ptr)=0
	Attaches `ptr` to this actor.

template<class F >
void	attach_functor (F f)
	Convenience function that attaches the functor `f` to this actor.

actor_addr	address () const noexcept
	Returns the logical actor address.

virtual size_t	detach (const attachable::token &what)=0
	Detaches the first attached object that matches `what`.

virtual std::set< std::string >	message_types () const
	Returns the set of accepted messages types as strings or an empty set if this actor is untyped.

actor_id	id () const noexcept
	Returns the ID of this actor.

node_id	node () const noexcept
	Returns the node this actor is living on.

actor_system &	home_system () const noexcept
	Returns the system that created this actor (or proxy).

Public Member Functions inherited from caf::abstract_channel
virtual bool	enqueue (strong_actor_ptr sender, message_id mid, message content, execution_unit *host=nullptr)=0
	Enqueues a new message without forwarding stack to the channel.

bool	is_abstract_actor () const

bool	is_abstract_group () const

bool	is_actor_decorator () const

Protected Member Functions
virtual void	on_cleanup (const error &reason)
	Allows subclasses to add additional cleanup code to the critical section in `cleanup`.

void	bounce (mailbox_element_ptr &what)
	Sends a response message if `what` is a request.

void	bounce (mailbox_element_ptr &what, const error &err)
	Sends a response message if `what` is a request.

	monitorable_actor (actor_config &cfg)
	Creates a new actor instance.

void	attach_impl (attachable_ptr &ptr)

size_t	detach_impl (const attachable::token &what, bool stop_on_hit=false, bool dry_run=false)

bool	handle_system_message (mailbox_element &x, execution_unit *ctx, bool trap_exit)

template<class F >
bool	handle_system_message (mailbox_element &x, execution_unit *context, bool trap_exit, F &down_msg_handler)

Protected Member Functions inherited from caf::abstract_actor
	abstract_actor (actor_config &cfg)

Protected Member Functions inherited from caf::abstract_channel
int	flags () const

void	flags (int new_value)

Protected Attributes
error	fail_state_

std::condition_variable	cv_

attachable_ptr	attachables_head_

Protected Attributes inherited from caf::abstract_actor
std::mutex	mtx_

Additional Inherited Members
Static Public Attributes inherited from caf::abstract_channel
static constexpr int	is_abstract_actor_flag = 0x01000000

static constexpr int	is_abstract_group_flag = 0x02000000

static constexpr int	is_actor_bind_decorator_flag = 0x04000000

static constexpr int	is_actor_dot_decorator_flag = 0x08000000

static constexpr int	is_actor_decorator_mask = 0x0C000000

static constexpr int	is_hidden_flag = 0x10000000

Related Functions inherited from caf::abstract_actor
using	actor_id = uint64_t
	A unique actor ID.

Detailed Description

Base class for all actor implementations.

Member Function Documentation

◆ attach()

void caf::monitorable_actor::attach ( attachable_ptr ptr )

overridevirtual

Attaches ptr to this actor.

The actor will call ptr->detach(...) on exit, or immediately if it already finished execution.

Implements caf::abstract_actor.

◆ detach()

size_t caf::monitorable_actor::detach ( const attachable::token & what )

overridevirtual

Detaches the first attached object that matches what.

Implements caf::abstract_actor.

◆ name()

virtual const char * caf::monitorable_actor::name ( ) const

virtual

Returns an implementation-dependent name for logging purposes, which is only valid as long as the actor is running.

The default implementation simply returns "actor".

Reimplemented in caf::blocking_actor, and caf::local_actor.

◆ on_cleanup()

virtual void caf::monitorable_actor::on_cleanup ( const error & reason )

protectedvirtual

Allows subclasses to add additional cleanup code to the critical section in cleanup.

This member function is called inside of a critical section.

Reimplemented in caf::actor_pool, and caf::decorator::sequencer.

The documentation for this class was generated from the following file:

libcaf_core/caf/monitorable_actor.hpp
