caf::abstract_actor Class Reference

Base class for all actor implementations. More...

#include <abstract_actor.hpp>

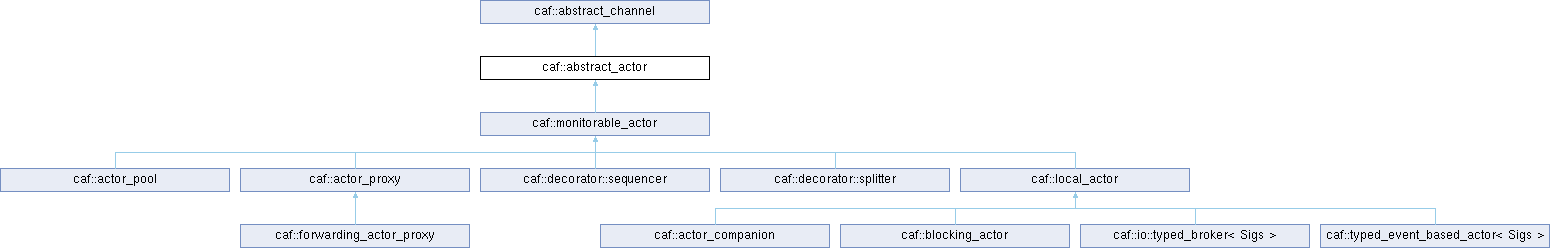

Inheritance diagram for caf::abstract_actor:

Public Member Functions
actor_control_block *	ctrl () const
	abstract_actor (const abstract_actor &)=delete
abstract_actor &	operator= (const abstract_actor &)=delete
virtual void	on_destroy ()
	Cleans up any remaining state before the destructor is called.
bool	enqueue (strong_actor_ptr sender, message_id mid, message msg, execution_unit *host) override
	Enqueues a new message without forwarding stack to the channel.
virtual bool	enqueue (mailbox_element_ptr what, execution_unit *host)=0
	Enqueues a new message wrapped in a mailbox_element to the actor.
virtual void	attach (attachable_ptr ptr)=0
	Attaches ptr to this actor.
template<class F >
void	attach_functor (F f)
	Convenience function that attaches the functor f to this actor.
actor_addr	address () const noexcept
	Returns the logical actor address.
virtual size_t	detach (const attachable::token &what)=0
	Detaches the first attached object that matches what.
virtual std::set< std::string >	message_types () const
	Returns the set of accepted messages types as strings or an empty set if this actor is untyped.
actor_id	id () const noexcept
	Returns the ID of this actor.
node_id	node () const noexcept
	Returns the node this actor is living on.
actor_system &	home_system () const noexcept
	Returns the system that created this actor (or proxy).
Public Member Functions inherited from caf::abstract_channel
virtual bool	enqueue (strong_actor_ptr sender, message_id mid, message content, execution_unit *host=nullptr)=0
	Enqueues a new message without forwarding stack to the channel.
bool	is_abstract_actor () const
bool	is_abstract_group () const
bool	is_actor_decorator () const

Protected Member Functions
	abstract_actor (actor_config &cfg)
Protected Member Functions inherited from caf::abstract_channel
int	flags () const
void	flags (int new_value)

Protected Attributes
std::mutex	mtx_

Related Functions
(Note that these are not member functions.)
using	actor_id = uint64_t
	A unique actor ID.

Additional Inherited Members
Static Public Attributes inherited from caf::abstract_channel
static constexpr int	is_abstract_actor_flag = 0x01000000
static constexpr int	is_abstract_group_flag = 0x02000000
static constexpr int	is_actor_bind_decorator_flag = 0x04000000
static constexpr int	is_actor_dot_decorator_flag = 0x08000000
static constexpr int	is_actor_decorator_mask = 0x0C000000
static constexpr int	is_hidden_flag = 0x10000000

Detailed Description

Base class for all actor implementations.

Member Function Documentation

attach()

virtual void caf::abstract_actor::attach ( attachable_ptr  ptr )

pure virtual

Attaches ptr to this actor.

The actor will call ptr->detach(...) on exit, or immediately if it already finished execution.

Implemented in caf::monitorable_actor.

attach_functor()

template<class F >

void caf::abstract_actor::attach_functor

(

F

f

)

Convenience function that attaches the functor f to this actor.

The actor executes f() on exit or immediately if it is not running.

detach()

virtual size_t caf::abstract_actor::detach ( const attachable::token &  what )

pure virtual

Detaches the first attached object that matches what.

Implemented in caf::monitorable_actor.

enqueue() [1/2]

virtual bool caf::abstract_actor::enqueue ( mailbox_element_ptr  what, execution_unit *  host  )

pure virtual

Enqueues a new message wrapped in a mailbox_element to the actor.

This enqueue variant allows to define forwarding chains.

Returns

true if the message has added to the mailbox, false otherwise. In the latter case, the actor terminated and the message has been dropped. Once this function returns false, it returns false for all future invocations.

Note

The returned value is purely informational and may be used to discard actor handles early. Messages may still get dropped later even if this function returns true. In particular when dealing with remote actors.

Implemented in caf::actor_companion, caf::decorator::sequencer, caf::decorator::splitter, caf::forwarding_actor_proxy, caf::actor_pool, and caf::blocking_actor.

enqueue() [2/2]

bool caf::abstract_actor::enqueue ( strong_actor_ptr  sender, message_id  mid, message  content, execution_unit *  host  )

overridevirtual

Enqueues a new message without forwarding stack to the channel.

Returns

true if the message has been dispatches successful, false otherwise. In the latter case, the channel has been closed and the message has been dropped. Once this function returns false, it returns false for all future invocations.

Implements caf::abstract_channel.

Reimplemented in caf::actor_companion.

message_types()

virtual std::set< std::string > caf::abstract_actor::message_types ( ) const

virtual

Returns the set of accepted messages types as strings or an empty set if this actor is untyped.

Reimplemented in caf::decorator::sequencer, caf::decorator::splitter, and caf::typed_event_based_actor< Sigs >.

on_destroy()

virtual void caf::abstract_actor::on_destroy ( )

virtual

Cleans up any remaining state before the destructor is called.

This function makes sure it is safe to call virtual functions in sub classes before destroying the object, because calling virtual function in the destructor itself is not safe. Any override implementation is required to call super::destroy() at the end.

Reimplemented in caf::actor_pool, and caf::local_actor.

---

The documentation for this class was generated from the following file:

• libcaf_core/caf/abstract_actor.hpp
