caf::actor_system_module Class Reference

An (optional) component of the actor system. More...

#include <actor_system_module.hpp>

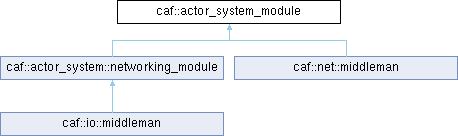

Inheritance diagram for caf::actor_system_module:

Public Types
enum	id_t {   middleman ,   openssl_manager ,   network_manager ,   num_ids }

Public Member Functions
const char *	name () const noexcept
	Returns the human-readable name of the module.
virtual void	start ()=0
	Starts any background threads needed by the module.
virtual void	stop ()=0
	Stops all background threads of the module.
virtual void	init (actor_system_config &)=0
	Allows the module to change the configuration of the actor system during startup.
virtual id_t	id () const =0
	Returns the identifier of this module.
virtual void *	subtype_ptr ()=0
	Returns a pointer to the subtype.

Detailed Description

An (optional) component of the actor system.

Member Function Documentation

id()

virtual id_t caf::actor_system_module::id ( ) const

pure virtual

Returns the identifier of this module.

Implemented in caf::io::middleman, and caf::net::middleman.

init()

virtual void caf::actor_system_module::init ( actor_system_config & )

pure virtual

Allows the module to change the configuration of the actor system during startup.

Implemented in caf::io::middleman, and caf::net::middleman.

start()

virtual void caf::actor_system_module::start ( )

pure virtual

Starts any background threads needed by the module.

Implemented in caf::io::middleman, and caf::net::middleman.

stop()

virtual void caf::actor_system_module::stop ( )

pure virtual

Stops all background threads of the module.

Implemented in caf::io::middleman, and caf::net::middleman.

subtype_ptr()

virtual void * caf::actor_system_module::subtype_ptr ( )

pure virtual

Returns a pointer to the subtype.

Implemented in caf::io::middleman, and caf::net::middleman.

---

The documentation for this class was generated from the following files:

• libcaf_core/caf/actor_system_module.hpp
• libcaf_core/caf/actor_system_module.cpp
