caf::net::http::server Class Reference

Implements the server part for the HTTP Protocol as defined in RFC 7231. More...

#include <server.hpp>

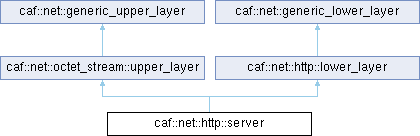

Inheritance diagram for caf::net::http::server:

Public Types
enum class	mode {   read_header ,   read_payload ,   read_chunks }
using	upper_layer_ptr = std::unique_ptr< http::upper_layer >

Public Member Functions
	server (upper_layer_ptr up)
auto &	upper_layer () noexcept
const auto &	upper_layer () const noexcept
size_t	max_request_size () const noexcept
void	max_request_size (size_t value) noexcept
multiplexer &	mpx () noexcept override
	Returns the multiplexer instance that executes this protocol stack.
bool	can_send_more () const noexcept override
	Queries whether the output device can accept more data straight away.
bool	is_reading () const noexcept override
	Queries whether the lower layer is currently reading from its input device.
void	write_later () override
	Triggers a write callback after the write device signals downstream capacity.
void	shutdown () override
	Shuts down any connection or session gracefully.
void	request_messages () override
	Start or re-start reading data from the client.
void	suspend_reading () override
	Stops reading messages until calling request_messages.
void	begin_header (status code) override
	Starts writing an HTTP header.
void	add_header_field (std::string_view key, std::string_view val) override
	Adds a header field.
bool	end_header () override
	Seals the header and transports it to the client.
bool	send_payload (const_byte_span bytes) override
	Sends the payload after the header.
bool	send_chunk (const_byte_span bytes) override
	Sends a chunk of data if the full payload is unknown when starting to send.
bool	send_end_of_chunks () override
	Sends the last chunk, completing a chunked payload.
void	switch_protocol (std::unique_ptr< octet_stream::upper_layer >) override
	Asks the stream to swap the HTTP layer with next after returning from consume.
error	start (octet_stream::lower_layer *down) override
	Initializes the upper layer.
void	abort (const error &reason) override
	Called by the lower layer for cleaning up any state in case of an error or when disposed.
void	prepare_send () override
	Gives the upper layer an opportunity to add additional data to the output buffer.
bool	done_sending () override
	Queries whether all pending data has been sent.
ptrdiff_t	consume (byte_span input, byte_span) override
	Consumes bytes from the lower layer.
virtual error	start (lower_layer *down)=0
	Initializes the upper layer.
virtual ptrdiff_t	consume (byte_span buffer, byte_span delta)=0
	Consumes bytes from the lower layer.
virtual void	prepare_send ()=0
	Gives the upper layer an opportunity to add additional data to the output buffer.
virtual bool	done_sending ()=0
	Queries whether all pending data has been sent.
virtual void	abort (const error &reason)=0
	Called by the lower layer for cleaning up any state in case of an error or when disposed.
Public Member Functions inherited from caf::net::http::lower_layer
virtual void	request_messages ()=0
	Start or re-start reading data from the client.
virtual void	suspend_reading ()=0
	Stops reading messages until calling request_messages.
virtual void	begin_header (status code)=0
	Starts writing an HTTP header.
virtual void	add_header_field (std::string_view key, std::string_view val)=0
	Adds a header field.
virtual bool	end_header ()=0
	Seals the header and transports it to the client.
virtual bool	send_payload (const_byte_span bytes)=0
	Sends the payload after the header.
virtual bool	send_chunk (const_byte_span bytes)=0
	Sends a chunk of data if the full payload is unknown when starting to send.
virtual bool	send_end_of_chunks ()=0
	Sends the last chunk, completing a chunked payload.
bool	send_response (status code)
	Sends a response that only consists of a header with a status code such as status::no_content.
bool	send_response (status code, std::string_view content_type, const_byte_span content)
	Convenience function for sending header and payload.
bool	send_response (status code, std::string_view content_type, std::string_view content)
	Sends a response that only consists of a header with a status code such as status::no_content.
bool	send_response (status code, const error &err)
	Sends a response that only consists of a header with a status code such as status::no_content.
virtual void	switch_protocol (std::unique_ptr< octet_stream::upper_layer > next)=0
	Asks the stream to swap the HTTP layer with next after returning from consume.
Public Member Functions inherited from caf::net::generic_lower_layer
virtual multiplexer &	mpx () noexcept=0
	Returns the multiplexer instance that executes this protocol stack.
virtual bool	can_send_more () const noexcept=0
	Queries whether the output device can accept more data straight away.
virtual bool	is_reading () const noexcept=0
	Queries whether the lower layer is currently reading from its input device.
virtual void	write_later ()=0
	Triggers a write callback after the write device signals downstream capacity.
virtual void	shutdown ()=0
	Shuts down any connection or session gracefully.
virtual void	shutdown (const error &reason)
	Shuts down any connection or session due to an error.

Static Public Member Functions
static std::unique_ptr< server >	make (upper_layer_ptr up)

Static Public Attributes
static constexpr uint32_t	default_max_request_size = 65'536
	Default maximum size for incoming HTTP requests: 64KiB.

Detailed Description

Implements the server part for the HTTP Protocol as defined in RFC 7231.

Member Function Documentation

abort()

void caf::net::http::server::abort ( const error &  reason )

overridevirtual

Called by the lower layer for cleaning up any state in case of an error or when disposed.

Implements caf::net::generic_upper_layer.

add_header_field()

void caf::net::http::server::add_header_field ( std::string_view  key, std::string_view  val  )

overridevirtual

Adds a header field.

Users may only call this function between begin_header and end_header.

Implements caf::net::http::lower_layer.

begin_header()

void caf::net::http::server::begin_header ( status  code )

overridevirtual

Starts writing an HTTP header.

Implements caf::net::http::lower_layer.

can_send_more()

bool caf::net::http::server::can_send_more ( ) const

overridevirtualnoexcept

Queries whether the output device can accept more data straight away.

Implements caf::net::generic_lower_layer.

consume()

ptrdiff_t caf::net::http::server::consume ( byte_span  buffer, byte_span  delta  )

overridevirtual

Consumes bytes from the lower layer.

Parameters

buffer	Available bytes to read.
delta	Bytes that arrived since last calling this function.

Returns

The number of consumed bytes. May be zero if waiting for more input or negative to signal an error.

Implements caf::net::octet_stream::upper_layer.

done_sending()

bool caf::net::http::server::done_sending ( )

overridevirtual

Queries whether all pending data has been sent.

The lower calls this function to decide whether it has to wait for write events on the socket.

Implements caf::net::generic_upper_layer.

end_header()

bool caf::net::http::server::end_header ( )

overridevirtual

Seals the header and transports it to the client.

Implements caf::net::http::lower_layer.

is_reading()

bool caf::net::http::server::is_reading ( ) const

overridevirtualnoexcept

Queries whether the lower layer is currently reading from its input device.

Implements caf::net::generic_lower_layer.

mpx()

multiplexer & caf::net::http::server::mpx ( )

overridevirtualnoexcept

Returns the multiplexer instance that executes this protocol stack.

Implements caf::net::generic_lower_layer.

prepare_send()

void caf::net::http::server::prepare_send ( )

overridevirtual

Gives the upper layer an opportunity to add additional data to the output buffer.

Implements caf::net::generic_upper_layer.

request_messages()

void caf::net::http::server::request_messages ( )

overridevirtual

Start or re-start reading data from the client.

Implements caf::net::http::lower_layer.

send_chunk()

bool caf::net::http::server::send_chunk ( const_byte_span  bytes )

overridevirtual

Sends a chunk of data if the full payload is unknown when starting to send.

Implements caf::net::http::lower_layer.

send_end_of_chunks()

bool caf::net::http::server::send_end_of_chunks ( )

overridevirtual

Sends the last chunk, completing a chunked payload.

Implements caf::net::http::lower_layer.

send_payload()

bool caf::net::http::server::send_payload ( const_byte_span  bytes )

overridevirtual

Sends the payload after the header.

Implements caf::net::http::lower_layer.

shutdown()

void caf::net::http::server::shutdown ( )

overridevirtual

Shuts down any connection or session gracefully.

Any pending data gets flushed before closing the socket.

Implements caf::net::generic_lower_layer.

start()

error caf::net::http::server::start ( octet_stream::lower_layer *  down )

overridevirtual

Initializes the upper layer.

Parameters

down	A pointer to the lower layer that remains valid for the lifetime of the upper layer.

Implements caf::net::octet_stream::upper_layer.

suspend_reading()

void caf::net::http::server::suspend_reading ( )

overridevirtual

Stops reading messages until calling request_messages.

Implements caf::net::http::lower_layer.

switch_protocol()

void caf::net::http::server::switch_protocol ( std::unique_ptr< octet_stream::upper_layer >  next )

overridevirtual

Asks the stream to swap the HTTP layer with next after returning from consume.

Note

may only be called from the upper layer in consume.

Implements caf::net::http::lower_layer.

write_later()

void caf::net::http::server::write_later ( )

overridevirtual

Triggers a write callback after the write device signals downstream capacity.

Does nothing if this layer is already writing.

Implements caf::net::generic_lower_layer.

---

The documentation for this class was generated from the following files:

• libcaf_net/caf/net/http/server.hpp
• libcaf_net/caf/net/http/server.cpp
