caf::net::generic_lower_layer Class Reference

Bundles protocol-independent, generic member functions for (almost all) lower layers. More...

#include <generic_lower_layer.hpp>

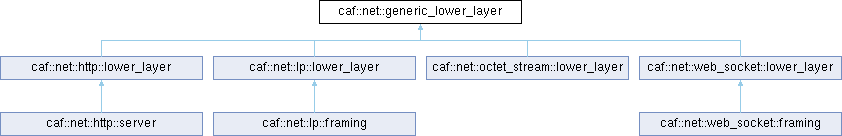

Inheritance diagram for caf::net::generic_lower_layer:

Public Member Functions
virtual multiplexer &	mpx () noexcept=0
	Returns the multiplexer instance that executes this protocol stack.
virtual bool	can_send_more () const noexcept=0
	Queries whether the output device can accept more data straight away.
virtual bool	is_reading () const noexcept=0
	Queries whether the lower layer is currently reading from its input device.
virtual void	write_later ()=0
	Triggers a write callback after the write device signals downstream capacity.
virtual void	shutdown ()=0
	Shuts down any connection or session gracefully.
virtual void	shutdown (const error &reason)
	Shuts down any connection or session du to an error.

Detailed Description

Bundles protocol-independent, generic member functions for (almost all) lower layers.

Member Function Documentation

can_send_more()

virtual bool caf::net::generic_lower_layer::can_send_more ( ) const

pure virtualnoexcept

Queries whether the output device can accept more data straight away.

Implemented in caf::net::http::server, caf::net::lp::framing, and caf::net::web_socket::framing.

is_reading()

virtual bool caf::net::generic_lower_layer::is_reading ( ) const

pure virtualnoexcept

Queries whether the lower layer is currently reading from its input device.

Implemented in caf::net::http::server, caf::net::lp::framing, caf::net::web_socket::framing, and caf::net::octet_stream::lower_layer.

mpx()

virtual multiplexer & caf::net::generic_lower_layer::mpx ( )

pure virtualnoexcept

Returns the multiplexer instance that executes this protocol stack.

Implemented in caf::net::http::server, caf::net::lp::framing, and caf::net::web_socket::framing.

shutdown() [1/2]

virtual void caf::net::generic_lower_layer::shutdown ( )

pure virtual

Shuts down any connection or session gracefully.

Any pending data gets flushed before closing the socket.

Implemented in caf::net::http::server, caf::net::lp::framing, and caf::net::web_socket::lower_layer.

shutdown() [2/2]

virtual void caf::net::generic_lower_layer::shutdown ( const error &  reason )

virtual

Shuts down any connection or session du to an error.

Any pending data gets flushed before closing the socket. Protocols with a dedicated closing handshake such as WebSocket may send the close reason to the peer.

Reimplemented in caf::net::web_socket::lower_layer.

write_later()

virtual void caf::net::generic_lower_layer::write_later ( )

pure virtual

Triggers a write callback after the write device signals downstream capacity.

Does nothing if this layer is already writing.

Implemented in caf::net::http::server, caf::net::lp::framing, and caf::net::web_socket::framing.

---

The documentation for this class was generated from the following file:

• libcaf_net/caf/net/generic_lower_layer.hpp
