caf::io::basp_broker Class Reference

A broker implementation for the Binary Actor System Protocol (BASP). More...

#include <basp_broker.hpp>

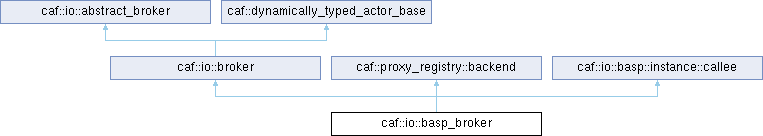

Inheritance diagram for caf::io::basp_broker:

Public Types
using	super = broker
using	ctx_map = std::unordered_map< connection_handle, basp::endpoint_context >
using	monitored_actor_map = std::unordered_map< actor_addr, std::unordered_set< node_id > >
Public Types inherited from caf::io::broker
using	super = extend< abstract_broker, broker >::with< mixin::sender, mixin::requester, mixin::behavior_changer >
using	signatures = none_t

Public Member Functions
	basp_broker (actor_config &cfg)
void	on_exit () override
const char *	name () const override
behavior	make_behavior () override
proxy_registry *	proxy_registry_ptr () override
resume_result	resume (execution_unit *, size_t) override
strong_actor_ptr	make_proxy (node_id nid, actor_id aid) override
	Creates a new proxy instance.
void	set_last_hop (node_id *ptr) override
	Sets the thread-local last-hop pointer to detect indirect connections.
void	finalize_handshake (const node_id &nid, actor_id aid, std::set< std::string > &sigs) override
	Called if a server handshake was received and the connection to nid is established.
void	purge_state (const node_id &nid) override
	Called whenever a direct connection was closed or a node became unreachable for other reasons before this node gets erased from the routing table.
void	proxy_announced (const node_id &nid, actor_id aid) override
	Called whenever a remote node created a proxy for one of our local actors.
void	learned_new_node_directly (const node_id &nid, bool was_indirectly_before) override
	Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.
void	learned_new_node_indirectly (const node_id &nid) override
	Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.
byte_buffer &	get_buffer (connection_handle hdl) override
	Returns a reference to the sent buffer.
void	flush (connection_handle hdl) override
	Flushes the underlying write buffer of hdl.
void	handle_heartbeat () override
	Called if a heartbeat was received from nid
execution_unit *	current_execution_unit () override
	Returns the current CAF scheduler context.
strong_actor_ptr	this_actor () override
	Returns a handle to the callee actor.
void	emit_node_down_msg (const node_id &node, const error &reason)
	Sends node_down_msg to all registered observers.
void	learned_new_node (const node_id &nid)
	Performs bookkeeping such as managing spawn_servers.
void	set_context (connection_handle hdl)
	Sets this_context by either creating or accessing state for hdl.
void	connection_cleanup (connection_handle hdl, sec code)
	Cleans up any state for hdl.
void	send_basp_down_message (const node_id &nid, actor_id aid, error err)
	Sends a basp::down_message message to a remote node.
void	handle_down_msg (down_msg &)
actor_system &	system ()
const actor_system_config &	config ()
const node_id &	this_node () const
	Returns the node identifier of the underlying BASP instance.
Public Member Functions inherited from caf::io::broker
template<class F , class... Ts>
infer_handle_from_fun< F >::type	fork (F fun, connection_handle hdl, Ts &&... xs)
void	initialize () override
	broker (actor_config &cfg)
	broker (broker &&)=delete
	broker (const broker &)=delete
broker &	operator= (broker &&)=delete
broker &	operator= (const broker &)=delete
Public Member Functions inherited from caf::io::abstract_broker
	abstract_broker (abstract_broker &&)=delete
	abstract_broker (const abstract_broker &&)=delete
abstract_broker &	operator= (abstract_broker &&)=delete
abstract_broker &	operator= (const abstract_broker &&)=delete
bool	enqueue (mailbox_element_ptr, execution_unit *) override
bool	enqueue (strong_actor_ptr, message_id, message, execution_unit *) override
void	launch (execution_unit *eu, bool lazy, bool hide) override
bool	cleanup (error &&reason, execution_unit *host) override
resume_result	resume (execution_unit *, size_t) override
template<class Handle >
void	halt (Handle hdl)
	Suspends activities on hdl unconditionally.
template<class Handle >
void	trigger (Handle hdl)
	Allows activities on hdl unconditionally (default).
template<class Handle >
void	trigger (Handle hdl, size_t num_events)
	Allows num_events activities on hdl.
void	configure_read (connection_handle hdl, receive_policy::config cfg)
	Modifies the receive policy for a given connection.
void	ack_writes (connection_handle hdl, bool enable)
	Enables or disables write notifications for a given connection.
byte_buffer &	wr_buf (connection_handle hdl)
	Returns the write buffer for a given connection.
void	write (connection_handle hdl, size_t bs, const void *buf)
	Writes data into the buffer for a given connection.
void	write (connection_handle hdl, span< const byte > buf)
	Writes buf into the buffer for a given connection.
void	flush (connection_handle hdl)
	Sends the content of the buffer for a given connection.
void	ack_writes (datagram_handle hdl, bool enable)
	Enables or disables write notifications for a given datagram socket.
byte_buffer &	wr_buf (datagram_handle hdl)
	Returns the write buffer for a given sink.
void	enqueue_datagram (datagram_handle, byte_buffer)
	Enqueue a buffer to be sent as a datagram via a given endpoint.
void	write (datagram_handle hdl, size_t data_size, const void *data)
	Writes data into the buffer of a given sink.
void	flush (datagram_handle hdl)
	Sends the content of the buffer to a UDP endpoint.
middleman &	parent ()
	Returns the middleman instance this broker belongs to.
void	add_scribe (scribe_ptr ptr)
	Adds the uninitialized scribe instance ptr to this broker.
connection_handle	add_scribe (network::native_socket fd)
	Creates and assigns a new scribe from given native socked fd.
expected< connection_handle >	add_tcp_scribe (const std::string &host, uint16_t port)
	Tries to connect to host on given port and creates a new scribe describing the connection afterwards.
void	move_scribe (scribe_ptr ptr)
	Moves the initialized scribe instance ptr from another broker to this broker.
void	add_doorman (doorman_ptr ptr)
	Adds a doorman instance to this broker.
accept_handle	add_doorman (network::native_socket fd)
	Creates and assigns a new doorman from given native socked fd.
void	move_doorman (doorman_ptr ptr)
	Adds a doorman instance to this broker.
expected< std::pair< accept_handle, uint16_t > >	add_tcp_doorman (uint16_t port=0, const char *in=nullptr, bool reuse_addr=false)
	Tries to open a local port and creates a doorman managing it on success.
void	add_datagram_servant (datagram_servant_ptr ptr)
	Adds a datagram_servant to this broker.
void	add_hdl_for_datagram_servant (datagram_servant_ptr ptr, datagram_handle hdl)
	Adds the datagram_servant under an additional hdl.
datagram_handle	add_datagram_servant (network::native_socket fd)
	Creates and assigns a new datagram_servant from a given socket fd.
datagram_handle	add_datagram_servant_for_endpoint (network::native_socket fd, const network::ip_endpoint &ep)
	Creates and assigns a new datagram_servant from a given socket fd for the remote endpoint ep.
expected< datagram_handle >	add_udp_datagram_servant (const std::string &host, uint16_t port)
	Creates a new datagram_servant for the remote endpoint host and port.
expected< std::pair< datagram_handle, uint16_t > >	add_udp_datagram_servant (uint16_t port=0, const char *in=nullptr, bool reuse_addr=false)
	Tries to open a local port and creates a datagram_servant managing it on success.
void	move_datagram_servant (datagram_servant_ptr ptr)
	Moves an initialized datagram_servant instance ptr from another broker to this one.
std::string	remote_addr (connection_handle hdl)
	Returns the remote address associated with hdl or empty string if hdl is invalid.
uint16_t	remote_port (connection_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
std::string	local_addr (accept_handle hdl)
	Returns the local address associated with hdl or empty string if hdl is invalid.
uint16_t	local_port (accept_handle hdl)
	Returns the local port associated with hdl or 0 if hdl is invalid.
accept_handle	hdl_by_port (uint16_t port)
	Returns the handle associated with given local port or none.
datagram_handle	datagram_hdl_by_port (uint16_t port)
	Returns the dgram handle associated with given local port or none.
std::string	remote_addr (datagram_handle hdl)
	Returns the remote address associated with hdl or an empty string if hdl is invalid.
uint16_t	remote_port (datagram_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
uint16_t	local_port (datagram_handle hdl)
	Returns the remote port associated with hdl or 0 if hdl is invalid.
bool	remove_endpoint (datagram_handle hdl)
	Remove the endpoint hdl from the broker.
void	close_all ()
	Closes all connections and acceptors.
template<class Handle >
bool	close (Handle hdl)
	Closes the connection or acceptor identified by handle.
template<class Handle >
bool	valid (Handle hdl)
	Checks whether hdl is assigned to broker.
const char *	name () const override
subtype_t	subtype () const override
size_t	num_connections () const noexcept
	Returns the number of open connections.
size_t	num_doormen () const noexcept
	Returns the number of attached doorman for accepting incoming connections.
std::vector< connection_handle >	connections () const
	Returns all handles of all scribe instances attached to this broker.
network::multiplexer &	backend ()
	Returns the multiplexer running this broker.
virtual strong_actor_ptr	make_proxy (node_id, actor_id)=0
	Creates a new proxy instance.
virtual void	set_last_hop (node_id *ptr)=0
	Sets the thread-local last-hop pointer to detect indirect connections.
Public Member Functions inherited from caf::io::basp::instance::callee
	callee (actor_system &sys, proxy_registry::backend &backend)
virtual void	finalize_handshake (const node_id &nid, actor_id aid, std::set< std::string > &sigs)=0
	Called if a server handshake was received and the connection to nid is established.
virtual void	purge_state (const node_id &nid)=0
	Called whenever a direct connection was closed or a node became unreachable for other reasons before this node gets erased from the routing table.
virtual void	proxy_announced (const node_id &nid, actor_id aid)=0
	Called whenever a remote node created a proxy for one of our local actors.
virtual void	learned_new_node_directly (const node_id &nid, bool was_known_indirectly)=0
	Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.
virtual void	learned_new_node_indirectly (const node_id &nid)=0
	Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.
virtual void	handle_heartbeat ()=0
	Called if a heartbeat was received from nid
virtual execution_unit *	current_execution_unit ()=0
	Returns the current CAF scheduler context.
proxy_registry &	proxies ()
	Returns the actor namespace associated to this BASP protocol instance.
virtual byte_buffer &	get_buffer (connection_handle hdl)=0
	Returns a reference to the sent buffer.
virtual void	flush (connection_handle hdl)=0
	Flushes the underlying write buffer of hdl.
virtual strong_actor_ptr	this_actor ()=0
	Returns a handle to the callee actor.

Public Attributes
union {
basp::instance   instance
};
	Protocol instance of BASP.
ctx_map	ctx
	Keeps context information for all open connections.
basp::endpoint_context *	this_context
	points to the current context for callbacks.
std::unordered_map< node_id, actor >	spawn_servers
	Stores handles to spawn servers for other nodes.
std::unordered_map< node_id, std::vector< actor_addr > >	node_observers
	Keeps track of actors that wish to receive a node_down_msg if a particular node fails.
bool	automatic_connections = false
	Configures whether BASP automatically open new connections to optimize routing paths by forming a mesh between all nodes.
monitored_actor_map	monitored_actors
	Keeps track of nodes that monitor local actors.

Additional Inherited Members
Protected Types inherited from caf::io::abstract_broker
using	doorman_map = std::unordered_map< accept_handle, intrusive_ptr< doorman > >
using	scribe_map = std::unordered_map< connection_handle, intrusive_ptr< scribe > >
using	datagram_servant_map = std::unordered_map< datagram_handle, intrusive_ptr< datagram_servant > >
virtual behavior	make_behavior ()
Protected Member Functions inherited from caf::io::abstract_broker
void	init_broker ()
	abstract_broker (actor_config &cfg)
template<class Handle >
auto	by_id (Handle hdl) -> optional< decltype(*ptr_of(hdl))>
	Returns a scribe or doorman identified by hdl.
Protected Attributes inherited from caf::io::basp::instance::callee
proxy_registry	namespace_

Detailed Description

A broker implementation for the Binary Actor System Protocol (BASP).

Member Function Documentation

current_execution_unit()

execution_unit * caf::io::basp_broker::current_execution_unit ( )

overridevirtual

Returns the current CAF scheduler context.

Implements caf::io::basp::instance::callee.

finalize_handshake()

void caf::io::basp_broker::finalize_handshake ( const node_id &  nid, actor_id  aid, std::set< std::string > &  sigs  )

overridevirtual

Called if a server handshake was received and the connection to nid is established.

Implements caf::io::basp::instance::callee.

flush()

void caf::io::basp_broker::flush ( connection_handle  hdl )

overridevirtual

Flushes the underlying write buffer of hdl.

Implements caf::io::basp::instance::callee.

get_buffer()

byte_buffer & caf::io::basp_broker::get_buffer ( connection_handle  hdl )

overridevirtual

Returns a reference to the sent buffer.

Implements caf::io::basp::instance::callee.

handle_heartbeat()

void caf::io::basp_broker::handle_heartbeat ( )

overridevirtual

Called if a heartbeat was received from nid

Implements caf::io::basp::instance::callee.

learned_new_node_directly()

void caf::io::basp_broker::learned_new_node_directly ( const node_id &  nid, bool  was_known_indirectly  )

overridevirtual

Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.

Implements caf::io::basp::instance::callee.

learned_new_node_indirectly()

void caf::io::basp_broker::learned_new_node_indirectly ( const node_id &  nid )

overridevirtual

Called whenever BASP learns the ID of a remote node to which it does not have a direct connection.

Implements caf::io::basp::instance::callee.

make_behavior()

behavior caf::io::basp_broker::make_behavior ( )

overridevirtual

Reimplemented from caf::io::broker.

make_proxy()

strong_actor_ptr caf::io::basp_broker::make_proxy ( node_id  , actor_id    )

overridevirtual

Creates a new proxy instance.

Implements caf::proxy_registry::backend.

proxy_announced()

void caf::io::basp_broker::proxy_announced ( const node_id &  nid, actor_id  aid  )

overridevirtual

Called whenever a remote node created a proxy for one of our local actors.

Implements caf::io::basp::instance::callee.

purge_state()

void caf::io::basp_broker::purge_state ( const node_id &  nid )

overridevirtual

Called whenever a direct connection was closed or a node became unreachable for other reasons before this node gets erased from the routing table.

Warning

The implementing class must not modify the routing table from this callback.

Implements caf::io::basp::instance::callee.

set_context()

void caf::io::basp_broker::set_context

(

connection_handle

hdl

)

Sets this_context by either creating or accessing state for hdl.

Automatically sets endpoint_context::last_seen to clock().now().

set_last_hop()

void caf::io::basp_broker::set_last_hop ( node_id *  ptr )

overridevirtual

Sets the thread-local last-hop pointer to detect indirect connections.

Implements caf::proxy_registry::backend.

this_actor()

strong_actor_ptr caf::io::basp_broker::this_actor ( )

overridevirtual

Returns a handle to the callee actor.

Implements caf::io::basp::instance::callee.

Member Data Documentation

spawn_servers

std::unordered_map<node_id, actor> caf::io::basp_broker::spawn_servers

Stores handles to spawn servers for other nodes.

These servers are spawned whenever the broker learns a new node ID and tries to get a 'SpawnServ' instance on the remote side.

---

The documentation for this class was generated from the following file:

• libcaf_io/caf/io/basp_broker.hpp
