Manages downstream communication for a stream_manager. More...

#include <downstream_manager.hpp>

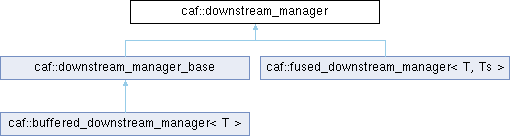

Inheritance diagram for caf::downstream_manager:

Classes
struct	path_predicate
	Predicate object for paths. More...

struct	path_visitor
	Function object for iterating over all paths. More...

Public Types
enum	path_algorithm { all_of , any_of , none_of }
	Selects a check algorithms.

using	path_type = outbound_path
	Outbound path.

using	path_ptr = path_type *
	Pointer to an outbound path.

using	const_path_ptr = const path_type *
	Pointer to an immutable outbound path.

using	unique_path_ptr = std::unique_ptr< path_type >
	Unique pointer to an outbound path.

using	time_point = typename actor_clock::time_point
	Discrete point in time, as reported by the actor clock.

Public Member Functions
	downstream_manager (stream_manager *parent)

	downstream_manager (const downstream_manager &)=delete

downstream_manager &	operator= (const downstream_manager &)=delete

scheduled_actor *	self () const noexcept

stream_manager *	parent () const noexcept

virtual bool	terminal () const noexcept
	Returns `true` if this manager belongs to a sink, i.e., terminates the stream and never has outbound paths.

void	tick (time_point now, timespan max_batch_delay)
	Forces underful batches after reaching the maximum delay.

template<class F >
void	for_each_path (F f)
	Applies `f` to each path.

template<class F >
void	for_each_path (F f) const
	Applies `f` to each path.

std::vector< stream_slot >	path_slots ()
	Returns all used slots.

std::vector< stream_slot >	open_path_slots ()
	Returns all open slots, i.e., slots assigned to outbound paths with `closing == false`.

template<class Predicate >
bool	all_paths (Predicate predicate) const noexcept
	Checks whether `predicate` holds true for all paths.

template<class Predicate >
bool	any_path (Predicate predicate) const noexcept
	Checks whether `predicate` holds true for any path.

template<class Predicate >
bool	no_path (Predicate predicate) const noexcept
	Checks whether `predicate` holds true for no path.

virtual size_t	num_paths () const noexcept
	Returns the current number of paths.

path_ptr	add_path (stream_slot slot, strong_actor_ptr target)
	Adds a pending path to `target` to the manager.

virtual bool	remove_path (stream_slot slot, error reason, bool silent) noexcept
	Removes a path from the manager.

virtual path_ptr	path (stream_slot slot) noexcept
	Returns the path associated to `slot` or `nullptr`.

const_path_ptr	path (stream_slot slot) const noexcept
	Returns the path associated to `slot` or `nullptr`.

bool	clean () const noexcept
	Returns `true` if there is no data pending and all batches are acknowledged batch on all paths.

bool	clean (stream_slot slot) const noexcept
	Returns `true` if `slot` is unknown or if there is no data pending and all batches are acknowledged on `slot`.

virtual void	close ()
	Removes all paths gracefully.

virtual void	close (stream_slot slot)
	Removes path `slot` gracefully by sending pending batches before removing it.

virtual void	abort (error reason)
	Removes all paths with an error message.

bool	empty () const noexcept
	Returns `num_paths() == 0`.

size_t	min_credit () const
	Returns the minimum amount of credit on all output paths.

size_t	max_credit () const
	Returns the maximum amount of credit on all output paths.

size_t	total_credit () const
	Returns the total amount of credit on all output paths, i.e., the sum of all individual credits.

virtual void	emit_batches ()
	Sends batches to sinks.

virtual void	force_emit_batches ()
	Sends batches to sinks regardless of whether or not the batches reach the desired batch size.

virtual size_t	capacity () const noexcept
	Queries the currently available capacity for the output buffer.

virtual size_t	buffered () const noexcept
	Queries the size of the output buffer.

virtual size_t	buffered (stream_slot slot) const noexcept
	Queries an estimate of the size of the output buffer for `slot`.

bool	stalled () const noexcept
	Queries whether the manager cannot make any progress, because its buffer is full and no more credit is available.

virtual void	clear_paths ()
	Silently removes all paths.

Protected Member Functions
virtual bool	insert_path (unique_path_ptr ptr)
	Inserts `ptr` to the implementation-specific container.

virtual void	for_each_path_impl (path_visitor &f)
	Applies `f` to each path.

virtual bool	check_paths_impl (path_algorithm algo, path_predicate &pred) const noexcept
	Dispatches the predicate to `std::all_of`, `std::any_of`, or `std::none_of`.

virtual void	about_to_erase (path_ptr ptr, bool silent, error *reason)
	Emits a regular (`reason == nullptr`) or irregular (`reason != nullptr`) shutdown if `silent == false`.

template<class Predicate >
bool	check_paths (path_algorithm algorithm, Predicate predicate) const noexcept
	Delegates to `check_paths_impl`.

Protected Attributes
stream_manager *	parent_

time_point	last_send_
	Stores the time stamp of our last batch.

Detailed Description

Manages downstream communication for a stream_manager.

The downstream manager owns the outbound_path objects, has a buffer for storing pending output and is responsible for the dispatching policy (broadcasting, for example). The default implementation terminates the stream and never accepts any paths.

Member Function Documentation

◆ abort()

virtual void caf::downstream_manager::abort ( error reason )

virtual

Removes all paths with an error message.

Reimplemented in caf::fused_downstream_manager< T, Ts >.

◆ about_to_erase()

virtual void caf::downstream_manager::about_to_erase	(	path_ptr	ptr,
		bool	silent,
		error *	reason
	)

protectedvirtual

Emits a regular (reason == nullptr) or irregular (reason != nullptr) shutdown if silent == false.

Warning: moves *reason if reason == nullptr

◆ add_path()

path_ptr caf::downstream_manager::add_path	(	stream_slot	slot,
		strong_actor_ptr	target
	)

Adds a pending path to target to the manager.

Returns: The added path on success, nullptr otherwise.

◆ buffered() [1/2]

virtual size_t caf::downstream_manager::buffered ( ) const

virtualnoexcept

Queries the size of the output buffer.

Reimplemented in caf::buffered_downstream_manager< T >, and caf::fused_downstream_manager< T, Ts >.

◆ buffered() [2/2]

virtual size_t caf::downstream_manager::buffered ( stream_slot slot ) const

virtualnoexcept

Queries an estimate of the size of the output buffer for slot.

Reimplemented in caf::fused_downstream_manager< T, Ts >.

◆ capacity()

virtual size_t caf::downstream_manager::capacity ( ) const

virtualnoexcept

Queries the currently available capacity for the output buffer.

Reimplemented in caf::buffered_downstream_manager< T >, and caf::fused_downstream_manager< T, Ts >.

◆ check_paths_impl()

virtual bool caf::downstream_manager::check_paths_impl	(	path_algorithm	algo,
		path_predicate &	pred
	)		const

protectedvirtualnoexcept

Dispatches the predicate to std::all_of, std::any_of, or std::none_of.

Reimplemented in caf::downstream_manager_base, and caf::fused_downstream_manager< T, Ts >.

◆ clean()

bool caf::downstream_manager::clean ( stream_slot slot ) const

noexcept

Returns true if slot is unknown or if there is no data pending and all batches are acknowledged on slot.

The default implementation returns false for all paths, even if clean() return true.

◆ clear_paths()

virtual void caf::downstream_manager::clear_paths ( )

virtual

Silently removes all paths.

Reimplemented in caf::downstream_manager_base, and caf::fused_downstream_manager< T, Ts >.

◆ close() [1/2]

virtual void caf::downstream_manager::close ( )

virtual

Removes all paths gracefully.

Reimplemented in caf::fused_downstream_manager< T, Ts >, and caf::fused_downstream_manager< T, Ts >.

◆ close() [2/2]

virtual void caf::downstream_manager::close ( stream_slot slot )

virtual

Removes path slot gracefully by sending pending batches before removing it.

Effectively calls path(slot)->closing = true.

Reimplemented in caf::fused_downstream_manager< T, Ts >.

◆ emit_batches()

virtual void caf::downstream_manager::emit_batches ( )

virtual

Sends batches to sinks.

Reimplemented in caf::fused_downstream_manager< T, Ts >.

◆ for_each_path_impl()

virtual void caf::downstream_manager::for_each_path_impl ( path_visitor & f )

protectedvirtual

Applies f to each path.

Reimplemented in caf::downstream_manager_base, and caf::fused_downstream_manager< T, Ts >.

◆ force_emit_batches()

virtual void caf::downstream_manager::force_emit_batches ( )

virtual

Sends batches to sinks regardless of whether or not the batches reach the desired batch size.

Reimplemented in caf::fused_downstream_manager< T, Ts >.

◆ insert_path()

virtual bool caf::downstream_manager::insert_path ( unique_path_ptr ptr )

protectedvirtual

Inserts ptr to the implementation-specific container.

Reimplemented in caf::downstream_manager_base, and caf::fused_downstream_manager< T, Ts >.

◆ num_paths()

virtual size_t caf::downstream_manager::num_paths ( ) const

virtualnoexcept

Returns the current number of paths.

Reimplemented in caf::downstream_manager_base, and caf::fused_downstream_manager< T, Ts >.

◆ path()

virtual path_ptr caf::downstream_manager::path ( stream_slot slot )

virtualnoexcept

Returns the path associated to slot or nullptr.

Reimplemented in caf::fused_downstream_manager< T, Ts >, and caf::downstream_manager_base.

◆ remove_path()

virtual bool caf::downstream_manager::remove_path	(	stream_slot	slot,
		error	reason,
		bool	silent
	)

virtualnoexcept

Removes a path from the manager.

Reimplemented in caf::fused_downstream_manager< T, Ts >, and caf::downstream_manager_base.

◆ terminal()

virtual bool caf::downstream_manager::terminal ( ) const

virtualnoexcept

Returns true if this manager belongs to a sink, i.e., terminates the stream and never has outbound paths.

Reimplemented in caf::buffered_downstream_manager< T >, and caf::fused_downstream_manager< T, Ts >.

The documentation for this class was generated from the following file:

libcaf_core/caf/downstream_manager.hpp
